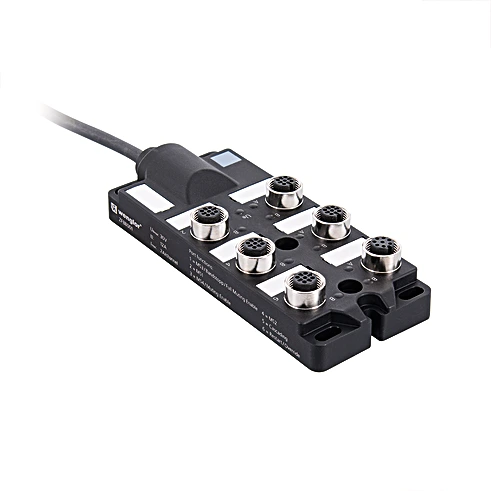

Wenglor ZFBB001 Connection Box for Muting Sensors 6-ports; for SEFG and SEFB

Connection Box for Muting Sensors 6-ports; for SEFG and SEFB.

$373.00
Part Number
  • ZFBB001
Highlights...

Features

  • Connection of external muting signals
  • Connection of up to 4 muting sensors
  • Simultaneous execution of muting and cascading
  • Reset and override functions available by connecting a pushbutton
  • Number of muting ports: 1
  • Number of cascading ports: 5
  • Coding: A-coding
  • Cable length (L): 1 m
  • Outer diameter (d): 9.7 mm
  • Wire cross-section: 0.34 / 1 mm²
  • Display: LED
  • Degree of Protection: IP65, IP67
  • Temperature Range: -22°F to 194°F
  • Housing Material: Plastic
  • Cable Jacket Material: Plastic, PUR
  • Material Wire Insulation: Plastic, PP
  • Halogen-free: yes
  • Drag Chain Suitable: yes
  • Bending radius (used in motion): 10 × d
  • Type of Connection Power: M12 × 1; 8-pin
  • Muting connection: 5 × M12; 4-pin
  • Cascading connection: M12 × 1; 8-pin
  • Weight: 262 g
  • Scope of delivery: 1 × connection box
  • Packaging unit: 1 Piece
  • External muting signals: yes
  • Cascading: yes
  • Muting sensors: Max. 4 pieces
  • Reset override: yes
The connection box provides four connections for muting sensors and supports all of the muting functions included with SEFG safety light curtains and SEFB multi-light arrays. Furthermore, the connection box makes it possible to simultaneously execute muting and cascading.
