Wenglor ZEFZ001 Mounting for SEFG/SEMG/SEFB/OSEI/OEEI

Mounting for SEFG/SEMG/SEFB/OSEI/OEEI.

$134.00
Part Number
  • ZEFZ001
Highlights...

Features

  • Adjustable
  • Simple installation on profiles and walls
  • With T-slot nuts for light curtain, multi-beam light curtain, light curtain for measuring tasks (sensor side)
  • 4 pre-assembled mounting elements
  • Mounting type, device-side: Screwable with slot nut
  • Mounting type, system-side: Aluminum profile
  • Material: Aluminum, anodised / Steel
  • Screw material: Steel, galvanized
  • Slot nut material: Brass
  • Weight: 377 g

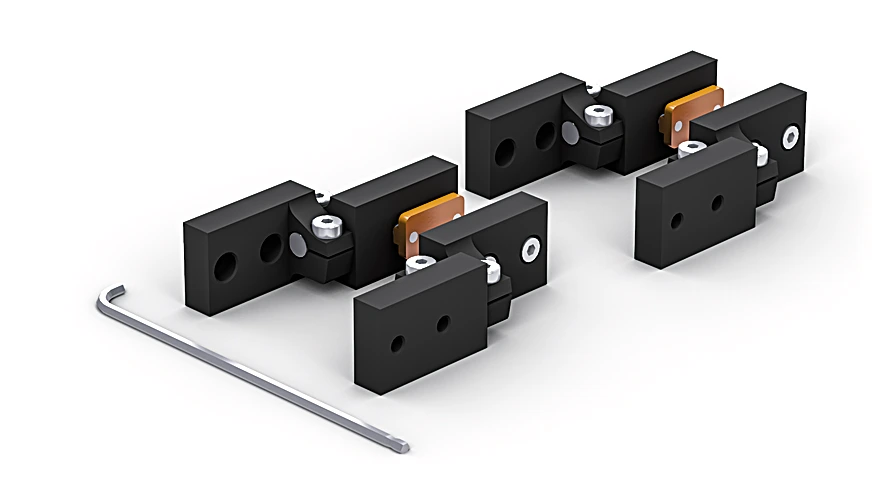

  • Scope of delivery: 1 × Allen key, 4 × mounting elements
  • Packaging unit: 4 Pieces
  • Use: for square housing

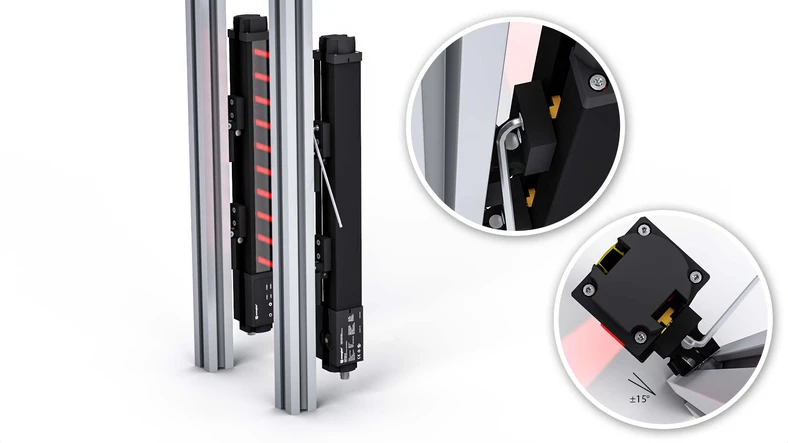

Suitable for lateral mounting of SEFGxxx and SEMGxxx safety light curtains, SEFBxxx safety light arrays and OSEIxxx and OEEIxxx light curtains for measuring tasks on aluminum profiles or walls. The mounted sensors can be installed rotated by ±15° depending on the application.
