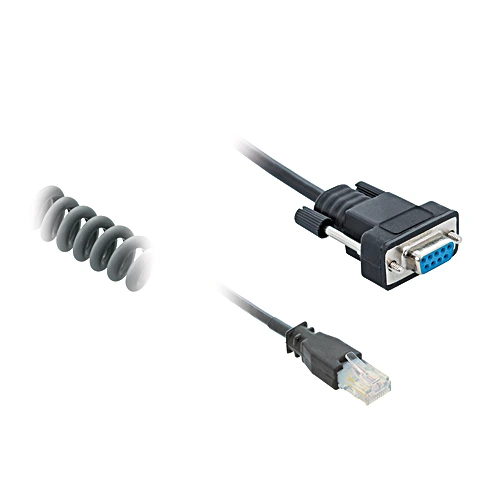

Wenglor ZDNV008 Interface Cable for CSMH/CSHH

Interface Cable for CSMH/CSHH.

$248.00
Part Number
  • ZDNV008
Highlights...

Features

  • RS-232 interface
  • Connection 1: Socket, straight

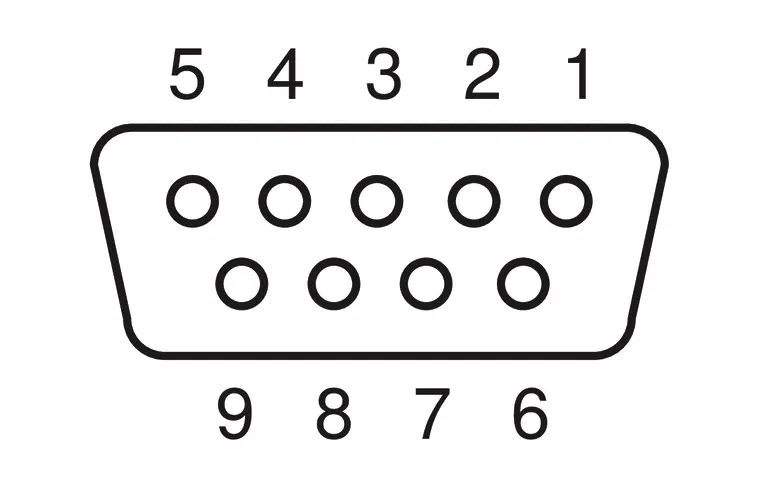

  • Connection mode 1: SUB D, 9-pin
  • Connection 2: Plug, straight

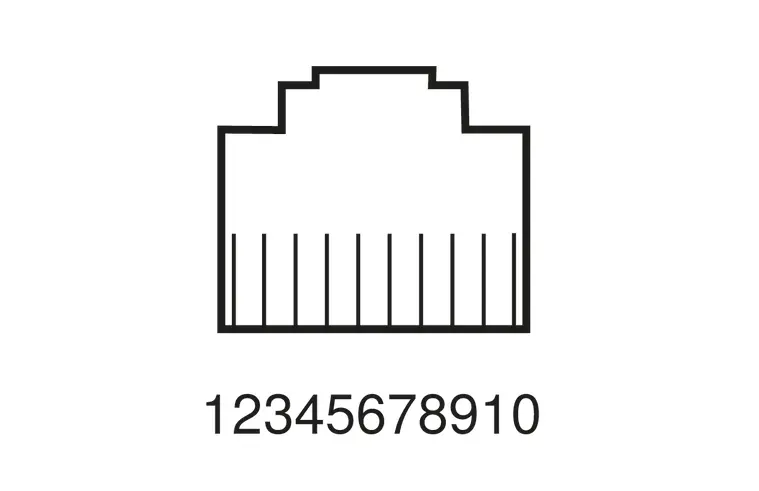

  • Connection mode 2: RJ50, 10-pin
  • Cable length (L): 3 m
  • Outer diameter (d): 6.4 mm
  • Wire cross-section: 0.25 mm²
  • Temperature Range: 32°F to 176°F
  • Cable Jacket Material: Plastic, PUR
  • Material Wire Insulation: Plastic, PVC
  • Screened: yes
  • Weight: 209 g
  • Packaging unit: 1 Piece
  • RS-232 Interface: yes
