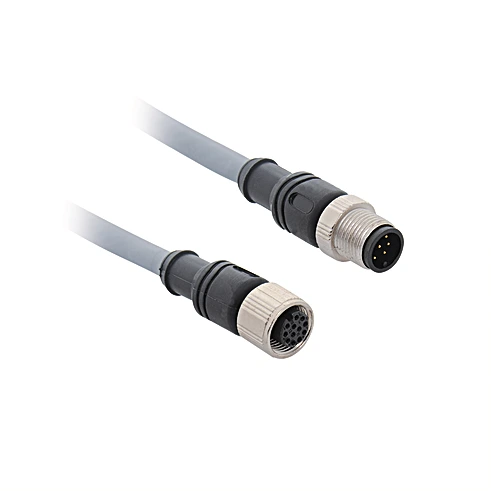

Wenglor ZDNV006 Adaptor Cable M12 × 1, 8-pin - M12 × 1, 12-pin

Adaptor Cable M12 × 1, 8-pin - M12 × 1, 12-pin.

$134.00
Part Number
  • ZDNV006
Highlights...

Features

  • Screened
  • Connection 1: Plug, straight

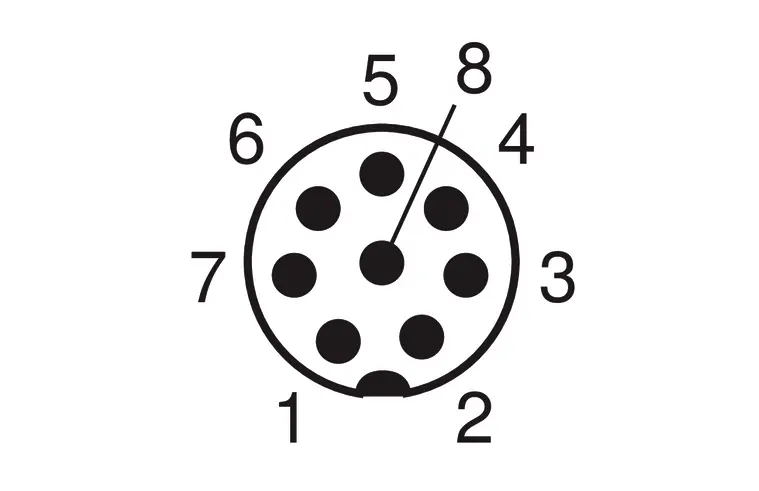

  • Connection mode 1: M12 × 1, 8-pin
  • Connection 2: Socket, straight

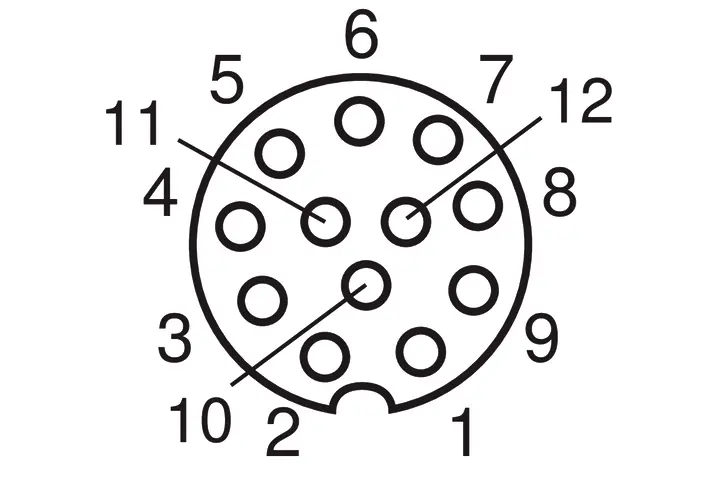

  • Connection mode 2: M12 × 1, 12-pin
  • Torque: M12: 0,6 Nm
  • Coding: A-coding
  • Cable length (L): 500 mm
  • Outer diameter (d): 6.3 mm
  • Wire cross-section: 0.25 mm²
  • Degree of Protection: IP67
  • Temperature Range: -13°F to 185°F
  • Cable Jacket Material: Plastic, PUR
  • Material Wire Insulation: Plastic, PP
  • Material Sleeve Nut: Zinc diecasting, nickel-plated
  • Screened: yes
  • Halogen-free: yes
  • Weight: 58 g
  • Packaging unit: 1 Piece
