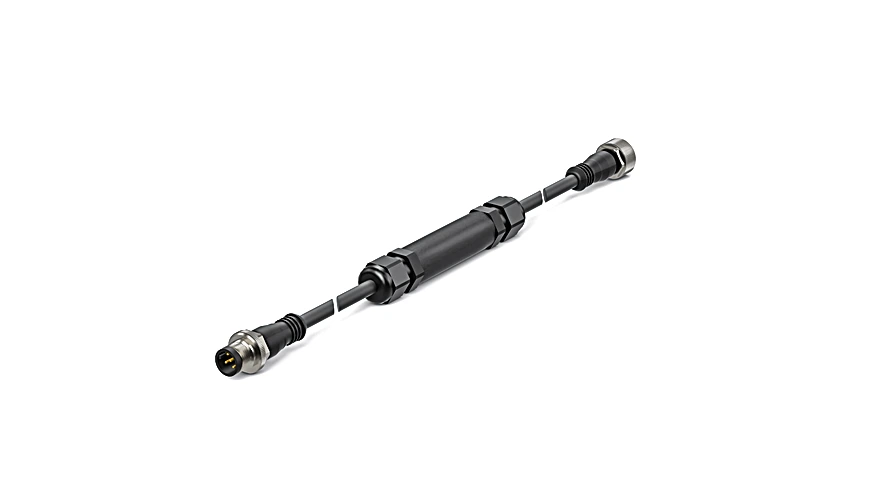

Wenglor ZDNG001 PNP-NPN Converter for multi-UV dome light

PNP-NPN Converter for multi-UV dome light.

$138.00
Part Number
  • ZDNG001
Highlights...

Features

  • Easy integration
  • Integrated PNP to NPN signal converter
  • For use with multi-UV dome light
  • Switching Frequency: < 310 Hz
  • Response Time: 0.9 µs
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Connection 1: Socket, straight
  • Connection mode 1: M12 × 1, 5-pin
  • Connection 2: stripped
  • Cable length (L): 2 m
  • Weight: 140 g
  • Scope of delivery: 1 × PNP-NPN converter
  • Packaging unit: 1 Piece

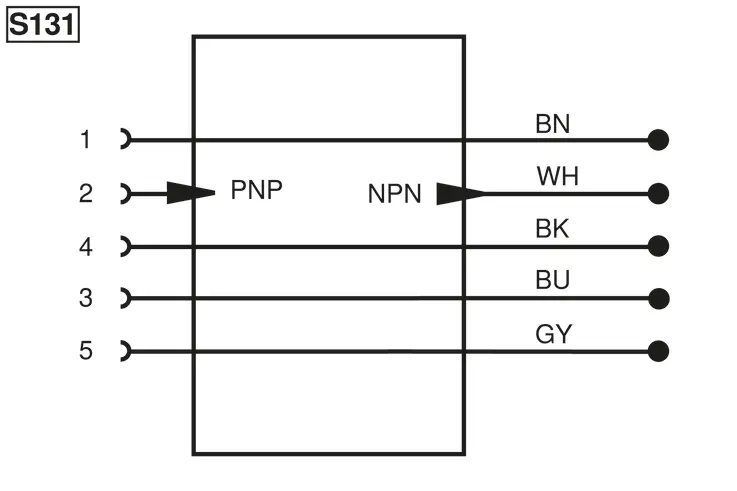

The ZDNG001 is designed for use with the multi-UV dome lights. The cable converts PNP signals to NPN signals at pin 2 on the M12-5P plug. It is a simple accessory for easier connection between cameras and lights.
