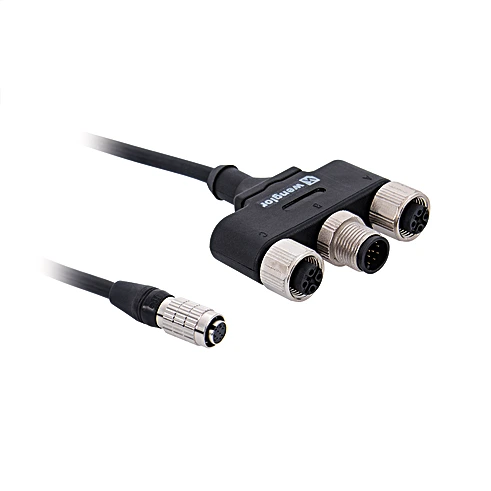

Wenglor ZDMG001 Connection Cable M12 × 1; Y distributor

Connection Cable M12 × 1; Y distributor.

$268.00
Part Number
  • ZDMG001
Highlights...

Features

  • Screened
  • Connection 1: Socket, straight
  • Connection mode 1: Hirose HR25, 8-pin
  • Connection 2: Plug, straight / Socket, straight
  • Connection mode 2: M12 × 1, 12-pin / M12 × 1, 4-pin
  • Coding: A-coding
  • Cable length (L): 300 mm
  • Outer diameter (d): 4.9 mm
  • Wire cross-section: 0.1 mm²
  • Temperature Range: -13°F to 185°F
  • Cable Jacket Material: Plastic, PVC
  • Screened: yes
  • Full Encapsulation: yes
  • Weight: 63 g
  • Scope of delivery: 1 × line
  • Packaging unit: 1 Piece
