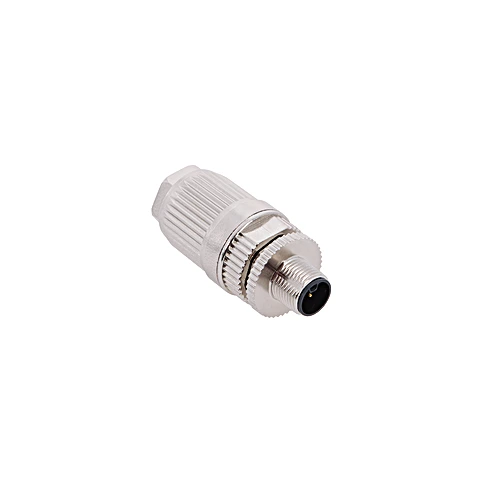

Wenglor ZDJP001 Connector Plug M12 × 1; 5-pin, L-coding
Connector Plug M12 × 1; 5-pin, L-coding.
$67.90
Part Number
- ZDJP001
Highlights...
- ZDJP001
- By Wenglor
- FREE Shipping on orders of $2,000 or more
Overview
Features
- Plug M12 × 1, straight
- Rated current: 12 A
- Connection 1: Plug, straight
- Connection mode 1: M12 × 1, 5-pin, L-cod.
- Torque: M12: 0,4 Nm
- Coding: L-coding
- Outer diameter (d): 8 to 10 mm
- Wire cross-section: ≤ 1.5 mm²
- Assembling: Screw Terminal Technology
- Degree of Protection: IP67
- Temperature Range: -40°F to 194°F
- Weight: 59 g
- Scope of delivery: 1 × connector plug
- Packaging unit: 1 Piece
Documents
Spec Sheets
Manuals
Other

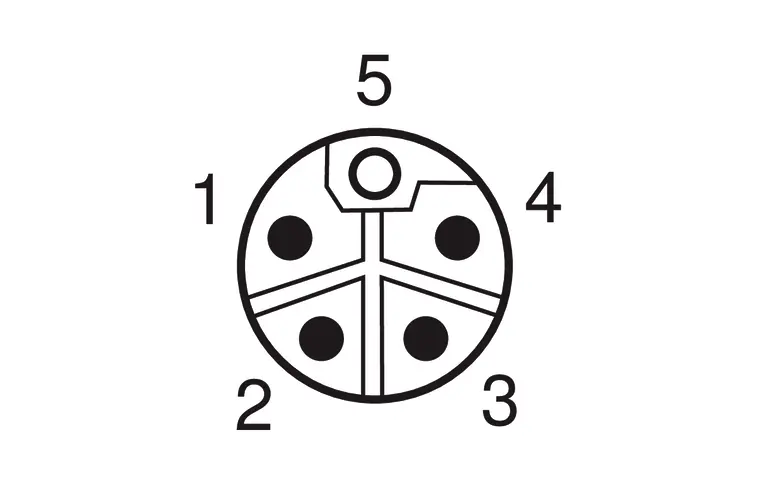

- Wenglor ZDJP001 Connector Plug M12 × 1; 5-pin, L-coding Pin assignment (87 KB)

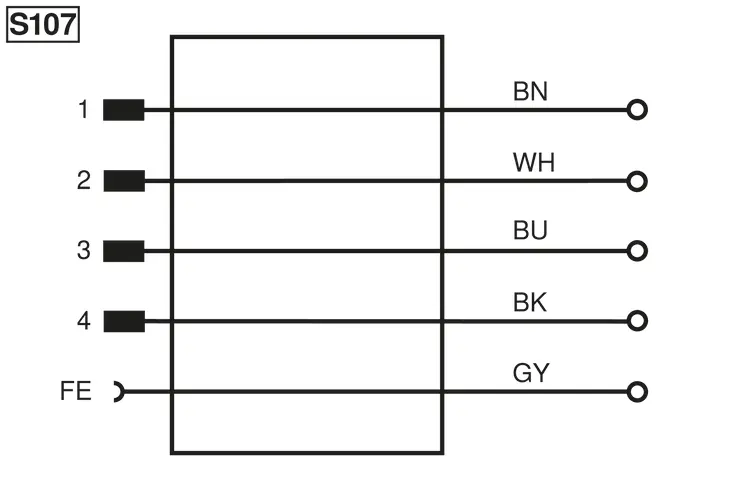

- Wenglor ZDJP001 Connector Plug M12 × 1; 5-pin, L-coding Connection Diagram-1 (29 KB)
- Wenglor ZDJP001 Connector Plug M12 × 1; 5-pin, L-coding Connection Diagram-2 (38 KB)

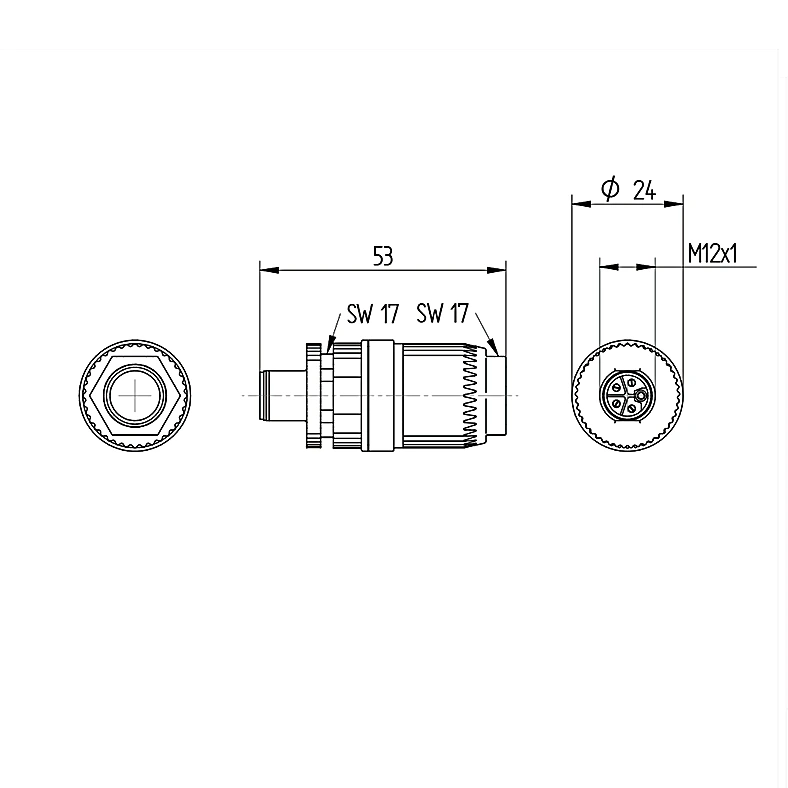

- Wenglor ZDJP001 Connector Plug M12 × 1; 5-pin, L-coding Dimensioned Picture (23 KB)
