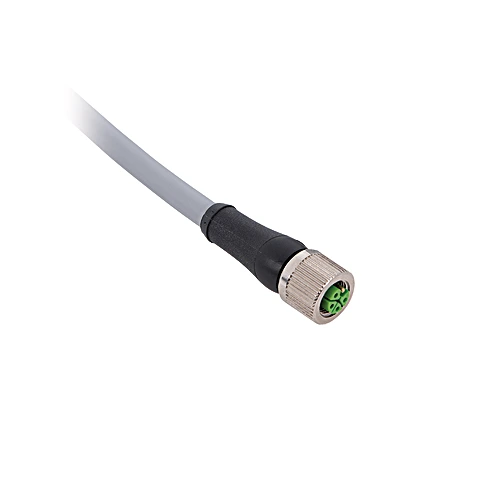

Wenglor ZDHL001 Connection Line M12 × 1; 5-pin, L-coding

Connection Line M12 × 1; 5-pin, L-coding.

$149.00
Part Number
  • ZDHL001
Highlights...

Features

  • PUR, straight
  • Halogen free
  • Rated current: 16 A
  • Connection 1: Socket, straight

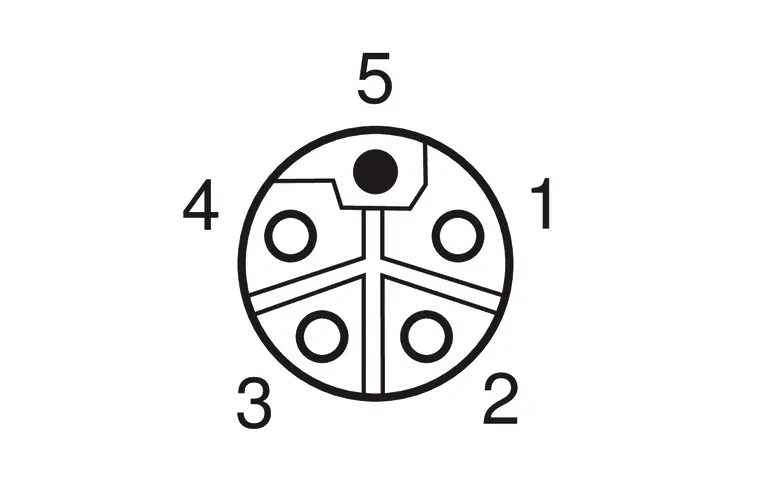

  • Connection mode 1: M12 × 1, 5-pin, L-cod.
  • Connection 2: stripped
  • Torque: M12: 0,6 Nm
  • Coding: L-coding

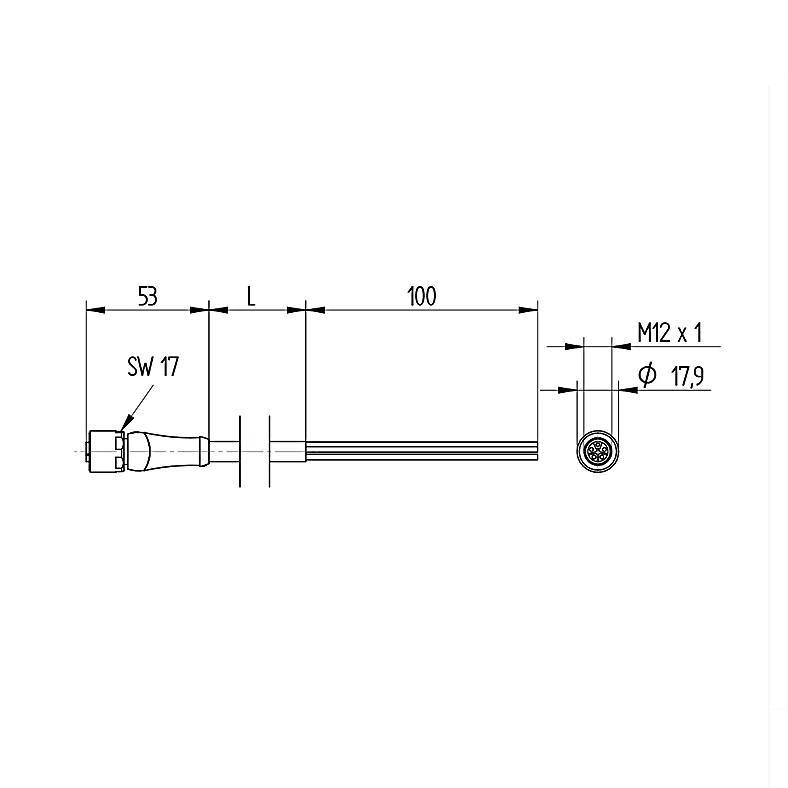

  • Cable length (L): 10 m
  • Outer diameter (d): 8.7 mm
  • Wire cross-section: 1.5 mm²
  • Degree of Protection: IP67
  • Temperature Range: 23°F to 158°F
  • Cable Jacket Material: Plastic, PUR
  • Material Wire Insulation: PVC
  • Material Sleeve Nut: Brass, nickel-plated
  • Halogen-free: yes
  • Bending radius (fixed installation): > 7,5 × d
  • Bending radius (used in motion): > 10 × d
  • Weight: 1,350 g
  • Scope of delivery: 1 × connection line
  • Packaging unit: 1 Piece
