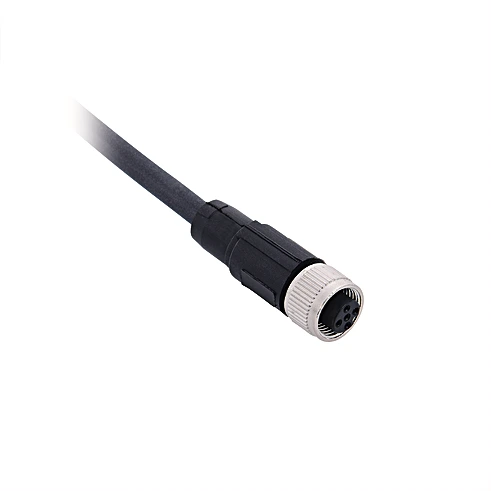

Wenglor ZDDL001 Connection Line M12 × 1; 5-pin

Features

• Straight
• Connection 1: Socket, straight

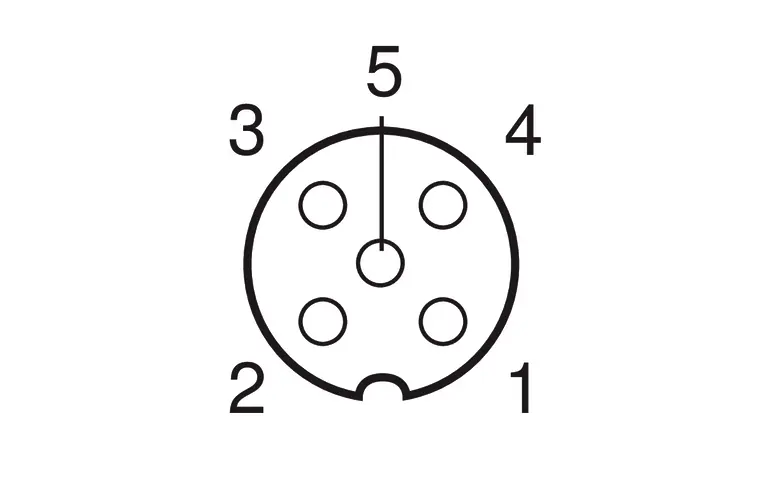

• Connection mode 1: M12 × 1, 5-pin
• Connection 2: stripped
• Torque: M12: 0,6 Nm
• Coding: A-coding
• Cable length (L): 2 m
• Outer diameter (d): 6.3 mm
• Wire cross-section: 0.75 mm²
• Degree of Protection: IP65 / IP67
• Temperature Range: 23°F to 176°F
• Cable Jacket Material: Plastic, PUR
• Material Wire Insulation: PVC
• Material Sleeve Nut: Brass, nickel-plated
• Halogen-free: yes
• Drag Chain Suitable: yes
• Bending radius (fixed installation): 5 × d
• Bending radius (used in motion): 10 × d
• Travel speed (with 5 m horizontal travel distance): 3 m/s
• Acceleration: 5 m/s²
• Bending cycles: 2000000
• Weight: 145 g
• Scope of delivery: 1 × line
• Packaging unit: 1 Piece
