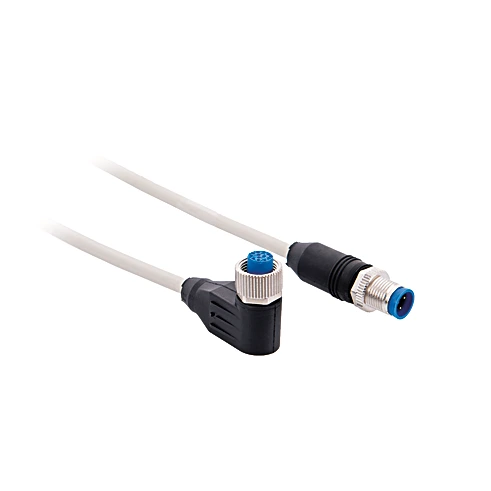

Wenglor ZDCV004 Connection Cable M12 × 1; 12-pin - M12 × 1, 4-pin

Features

• Screened
• Drag chain suitable
• Suitable for robots
• Supply Voltage: ≤ 30 V DC
• Connection 1: Socket, angled

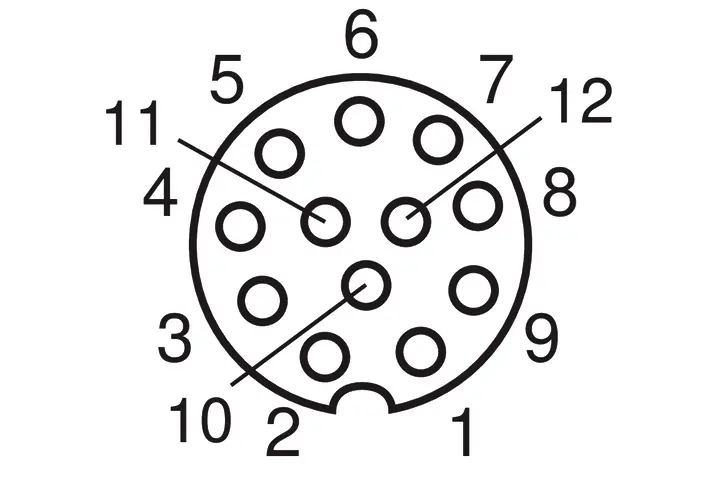

• Connection mode 1: M12 × 1, 12-pin
• Connection 2: Plug, straight

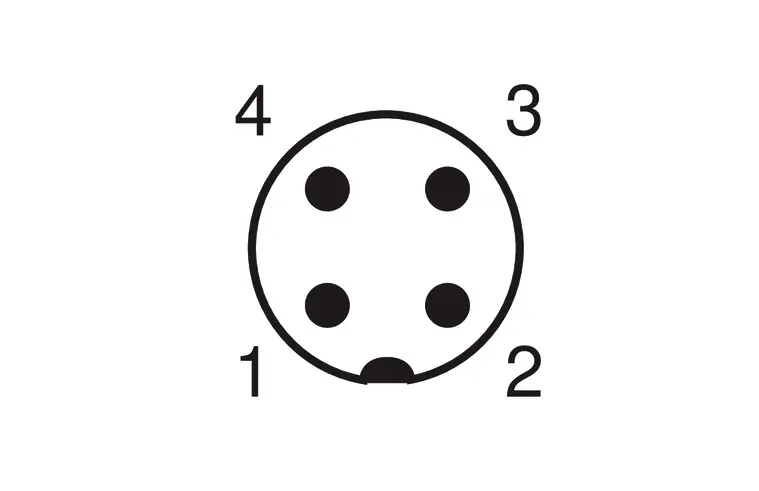

• Connection mode 2: M12 × 1, 4-pin
• Torque: M12: 0,6 Nm
• Coding: A-coding
• Cable length (L): 2 m
• Outer diameter (d): 5 mm
• Wire cross-section: 0.25 mm²
• Degree of Protection: IP67
• Temperature range (fixed installation): -40°F to 158°F
• Temperature range (moving application): -4°F to 158°F
• Jacket color: gray
• Cable Jacket Material: Plastic, PUR
• Material Wire Insulation: Plastic, TPE
• Material Sleeve Nut: Brass, nickel-plated
• Screened: yes
• Halogen-free: yes
• Drag Chain Suitable: yes
• Bending radius (fixed installation): > 5 × d
• Bending radius (used in motion): > 7,5 × d
• Bending cycles: ≤ 2000000
• Torsional stress: ≤ 180°/m
• Weight: 121 g
• Scope of delivery: 1 × line
• Packaging unit: 1 Piece
