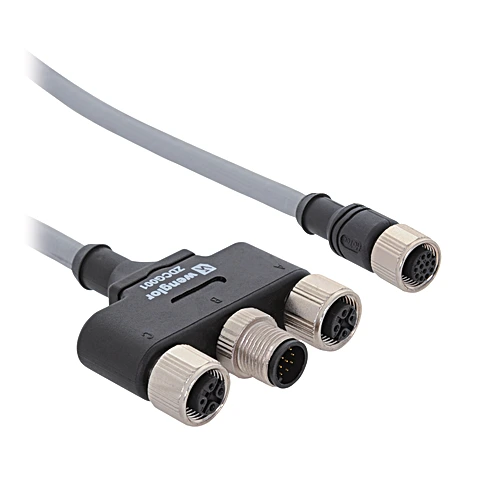

Wenglor ZDCG004 Connection Cable M12 × 1; Y distributor

Connection Cable M12 × 1; Y distributor.

$193.00
Part Number
  • ZDCG004
Highlights...

Features

  • Screened
  • Socket M12 × 1, straight
  • Plug M12 × 1, straight
  • Connection 1: Socket, straight

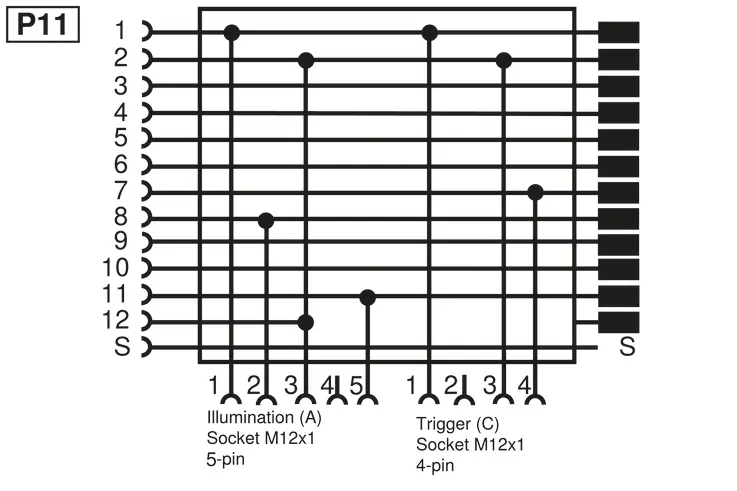

  • Connection mode 1: M12 × 1, 12-pin
  • Connection 2: Plug, straight / Socket, straight
  • Connection mode 2: M12 × 1, 12-pin / M12 × 1, 4-pin
  • Coding: A-coding

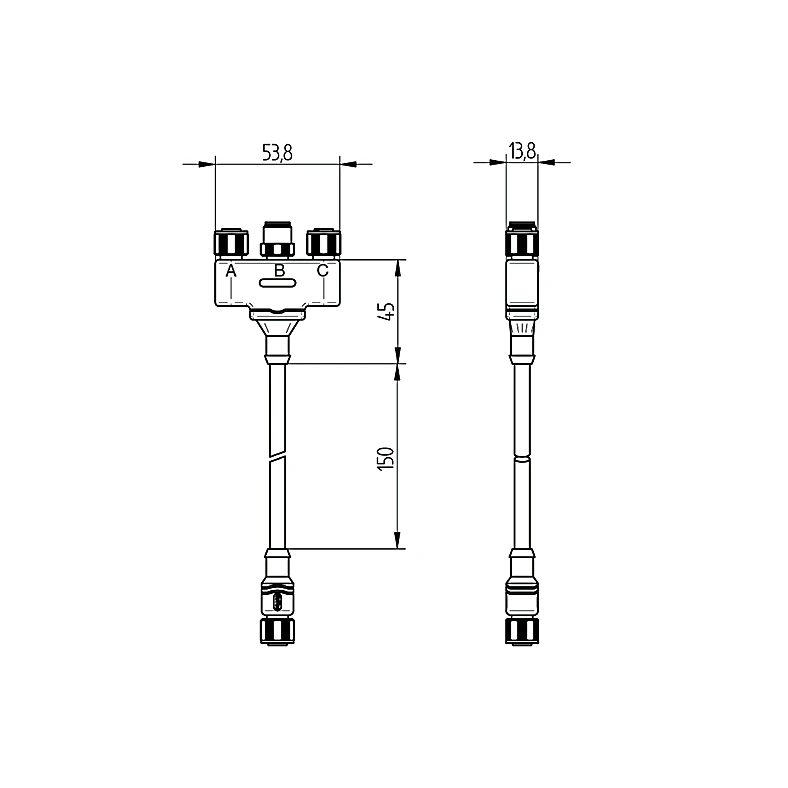

  • Cable length (L): 150 mm
  • Outer diameter (d): 6.6 mm
  • Wire cross-section: 0.14 mm²
  • Degree of Protection: IP67
  • Temperature Range: -13°F to 185°F
  • Cable Jacket Material: Plastic, PUR
  • Material Sleeve Nut: Zinc diecasting, nickel-plated
  • Screened: yes
  • Halogen-free: yes
  • Full Encapsulation: yes
  • Weight: 62 g
  • Scope of delivery: 1 × line
  • Packaging unit: 1 Piece
  • Complementary Products: ZC4G002 connection cable, ZC4G003 connection cable

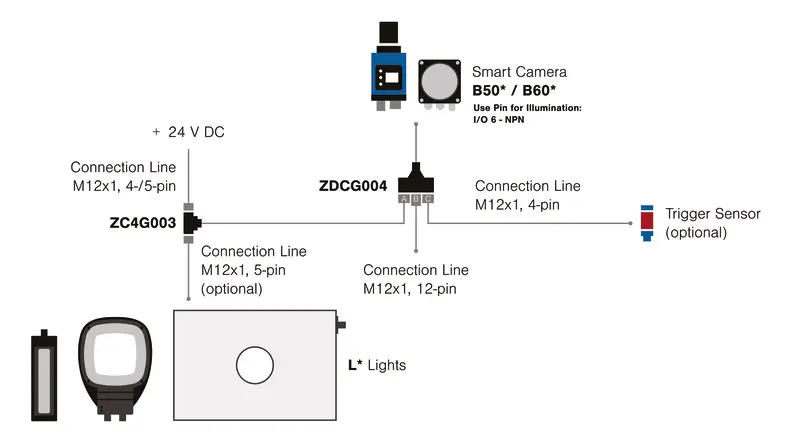

This connection cable facilitates the connection of external illumination and trigger sensors to Smart Cameras.
