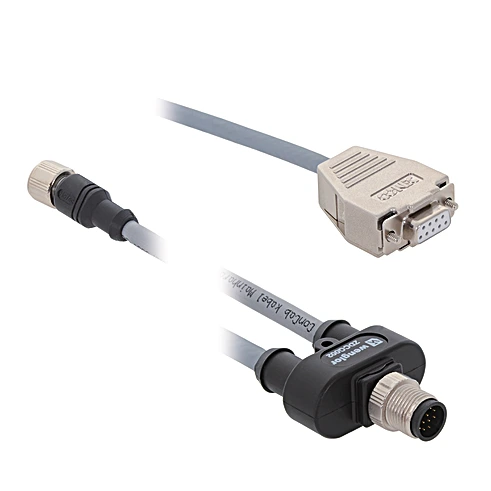

Wenglor ZDCG002 Interface Cable M12 × 1, 12-pin; SUB D, 9-pin; Y-Distributor

Interface Cable M12 × 1, 12-pin; SUB D, 9-pin; Y-Distributor.

$165.00
Part Number
  • ZDCG002
Highlights...

Features

  • Socket SUB D, 9-pin
  • Screened
  • Plug M12 × 1, straight
  • Socket M12 × 1, straight
  • Connection 1: Plug, straight
  • Connection mode 1: M12 × 1, 12-pin
  • Connection 2: Socket, straight
  • Connection mode 2: SUB D, 9-pin / M12 × 1, 12-pin
  • Coding: A-coding

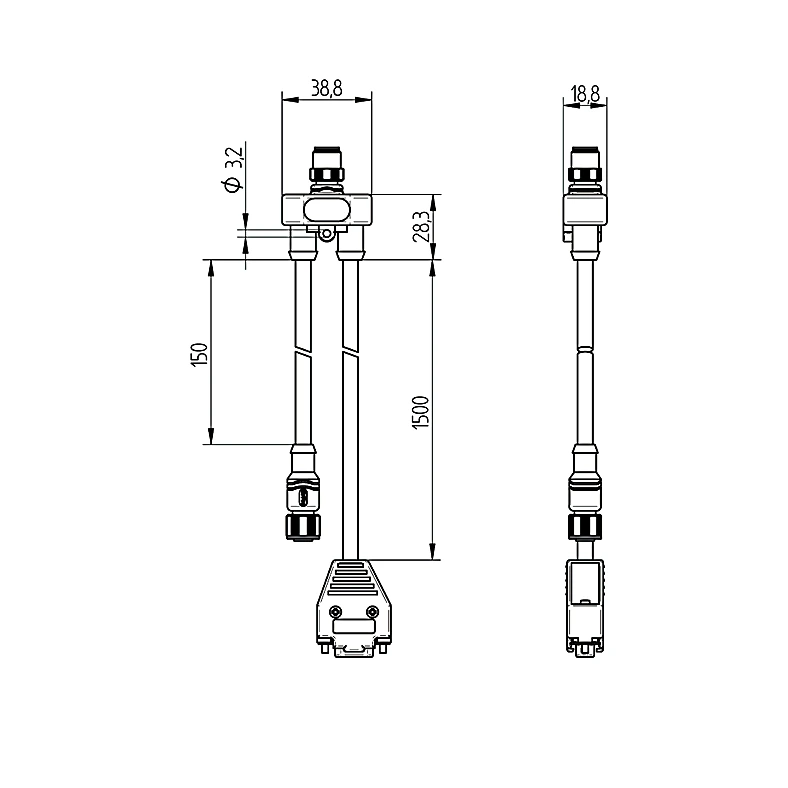

  • Cable length (L): 0.15 / 1.5 m
  • Outer diameter (d): 6.6 mm
  • Wire cross-section: 0.14 mm²
  • Degree of Protection: IP67
  • Temperature Range: -13°F to 185°F
  • Cable Jacket Material: Plastic, PUR
  • Material Sleeve Nut: Zinc diecasting, nickel-plated
  • Screened: yes
  • Halogen-free: yes
  • Full Encapsulation: yes
  • Weight: 153 g
  • Packaging unit: 1 Piece
