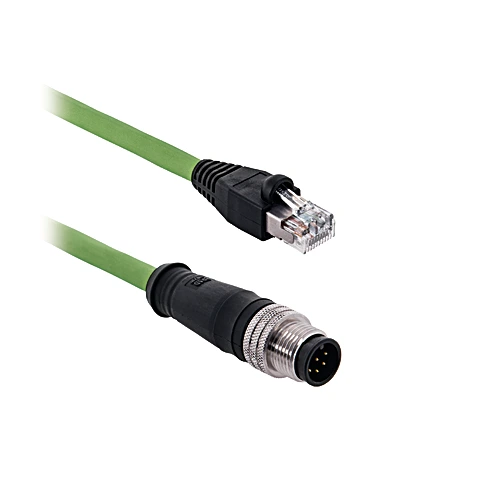

Wenglor ZCYV007 Connection Cable M12 × 1; 8-pin - RJ45; 8-pin

Connection Cable M12 × 1; 8-pin - RJ45; 8-pin.

$79.90
Part Number
  • ZCYV007
Highlights...

Features

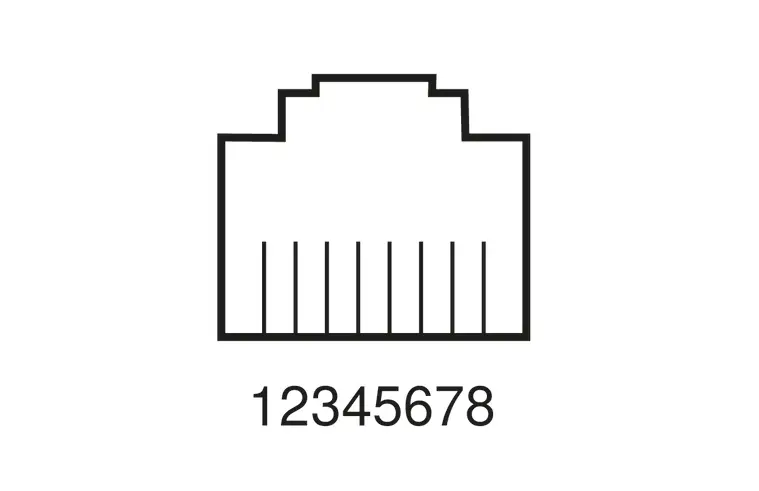

  • Plug RJ45, 8-pin
  • Plug M12 × 1, straight
  • Drag chain suitable
  • Suitable for robots
  • Connection 1: Plug, straight

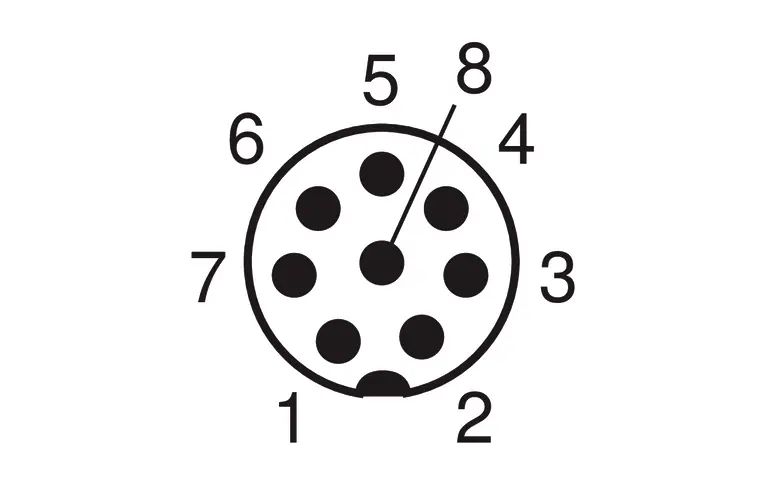

  • Connection mode 1: M12 × 1, 8-pin
  • Connection 2: Plug, straight
  • Connection mode 2: RJ45, 8-pin
  • Coding: A-coding
  • Cable length (L): 2 m
  • Outer diameter (d): 7.6 mm
  • Wire cross-section: 0.25 mm²
  • Degree of Protection: IP67
  • Temperature Range: -13°F to 176°F
  • Cable Jacket Material: Plastic, TPE
  • Material Wire Insulation: Plastic, HDPE
  • Material Sleeve Nut: Brass, nickel-plated
  • Category: CAT 5E
  • Screened: yes
  • Halogen-free: yes
  • Drag Chain Suitable: yes
  • Bending radius (fixed installation): 5 × d
  • Bending radius (used in motion): 10 × d
  • Bending cycles: ≤ 1000000
  • Torsional stress: ≤ 3,000,000
  • Weight: 169 g
  • Scope of delivery: 1 × line
  • Packaging unit: 1 Piece
