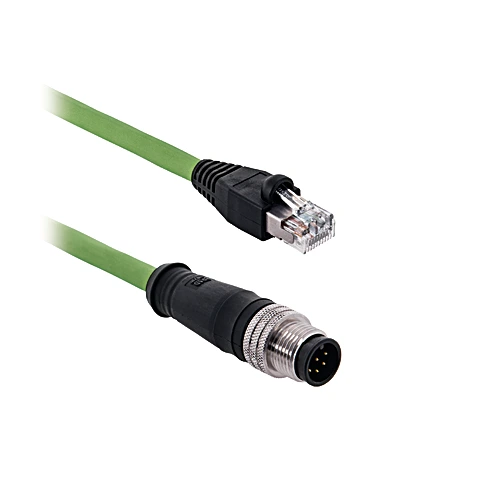

Wenglor ZCYV002 Connection Cable M12 × 1; 8-pin - RJ45; 8-pin
Connection Cable M12 × 1; 8-pin - RJ45; 8-pin.
$115.00
Part Number
- ZCYV002
Highlights...
- ZCYV002
- By Wenglor
- FREE Shipping on orders of $2,000 or more
Overview
Features
- Plug RJ45, 8-pin
- Plug M12 × 1, straight
- Connection 1: Plug, straight
- Connection mode 1: M12 × 1, 8-pin
- Connection 2: Plug, straight
- Connection mode 2: RJ45, 8-pin
- Coding: A-coding
- Cable length (L): 5 m
- Outer diameter (d): 6.4 mm
- Wire cross-section: 0.14 mm²
- Degree of Protection: IP67
- Temperature Range: -13°F to 140°F
- Cable Jacket Material: Plastic, PUR
- Material Wire Insulation: Plastic, PE
- Material Sleeve Nut: Brass, nickel-plated
- Category: CAT 5E
- Screened: yes
- Halogen-free: yes
- Weight: 224 g
- Scope of delivery: 1 × line
- Packaging unit: 1 Piece
Documents
Spec Sheets
Other

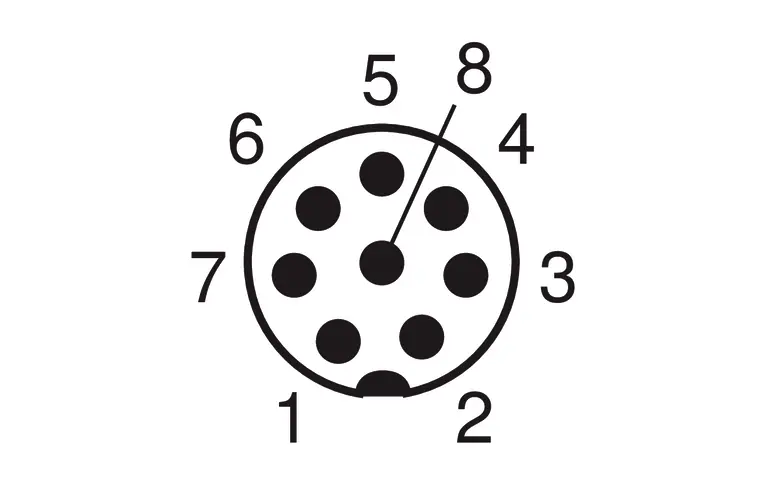

- Wenglor ZCYV002 Connection Cable M12 × 1; 8-pin - RJ45; 8-pin Pin assignment-1 (86 KB)

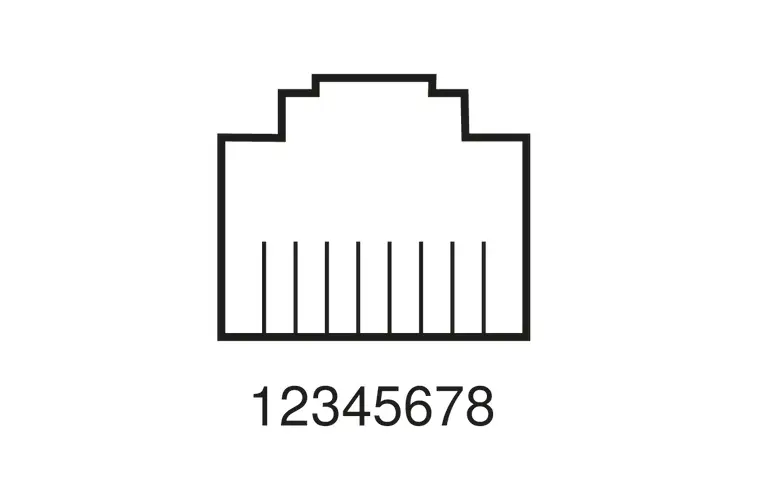

- Wenglor ZCYV002 Connection Cable M12 × 1; 8-pin - RJ45; 8-pin Pin assignment-2 (77 KB)

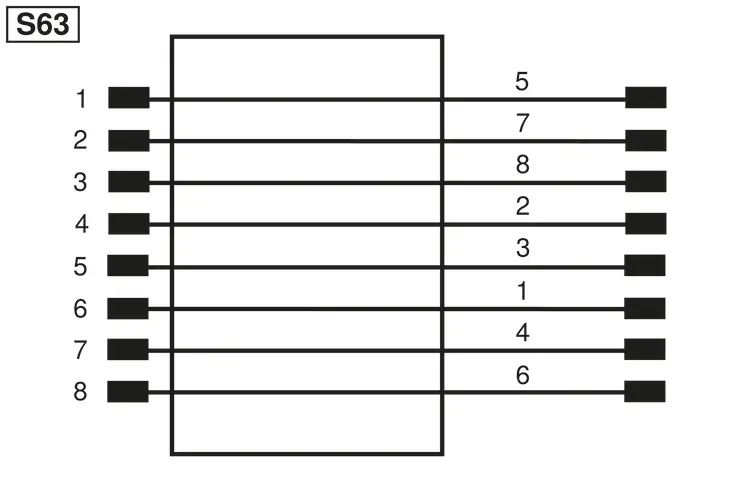

- Wenglor ZCYV002 Connection Cable M12 × 1; 8-pin - RJ45; 8-pin Connection Diagram-1 (30 KB)
- Wenglor ZCYV002 Connection Cable M12 × 1; 8-pin - RJ45; 8-pin Connection Diagram-2 (38 KB)

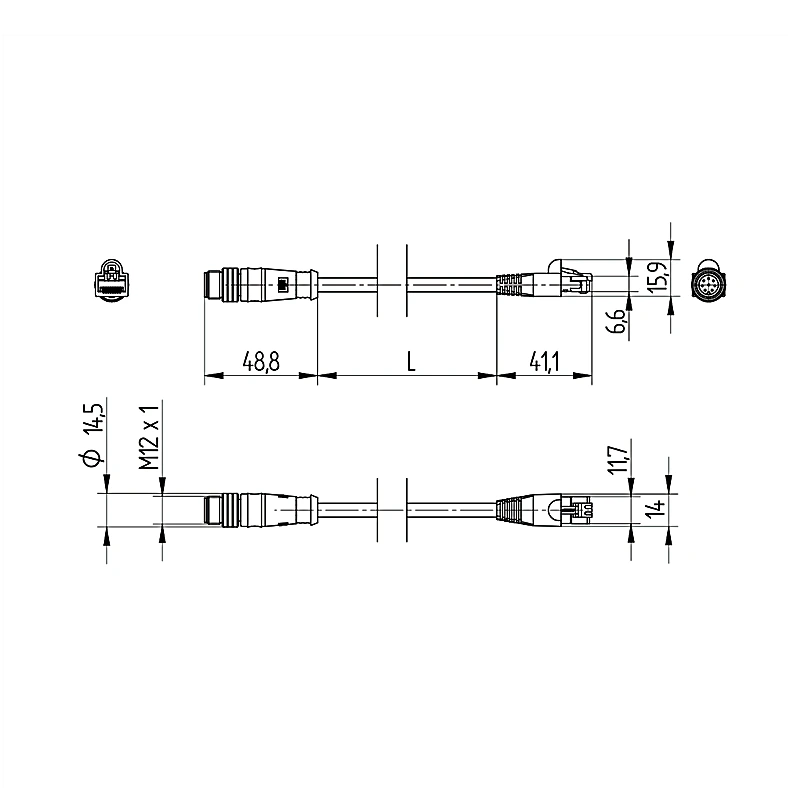

- Wenglor ZCYV002 Connection Cable M12 × 1; 8-pin - RJ45; 8-pin Dimensioned Picture (20 KB)
