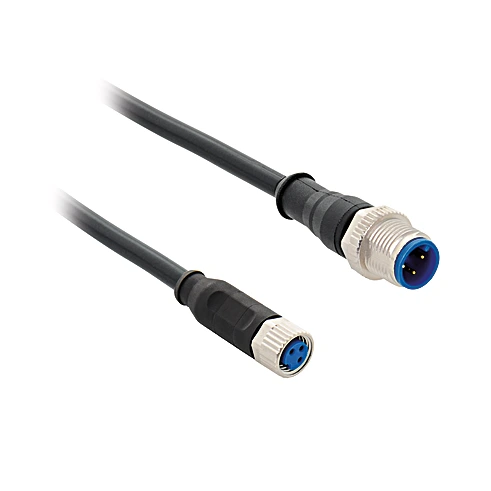

Wenglor ZCGV001 Connection Cable M8×1, 3-pin – M12×1, 4-pin

Connection Cable M8×1, 3-pin – M12×1, 4-pin.

$28.20
Part Number
  • ZCGV001
Highlights...

Features

  • Socket M8 × 1, straight
  • Plug M12 × 1, straight
  • Supply Voltage: ≤ 50 V AC/DC
  • Connection 1: Socket, straight
  • Connection mode 1: M8 × 1, 3-pin
  • Connection 2: Plug, straight
  • Connection mode 2: M12 × 1, 4-pin
  • Torque: M8: 0,4 Nm; M12: 0,6 Nm
  • Coding: A-coding
  • Cable length (L): 2 m
  • Outer diameter (d): 4.5 mm
  • Wire cross-section: 0.25 mm²
  • Degree of Protection: IP67
  • Temperature range (fixed installation): -22°F to 176°F
  • Temperature range (moving application): 23°F to 176°F
  • Cable Jacket Material: Plastic, PVC
  • Material Wire Insulation: Plastic, PVC
  • Material Sleeve Nut: Brass, nickel-plated
  • Weight: 72 g
  • Scope of delivery: 1 × line
  • Packaging unit: 1 Piece
