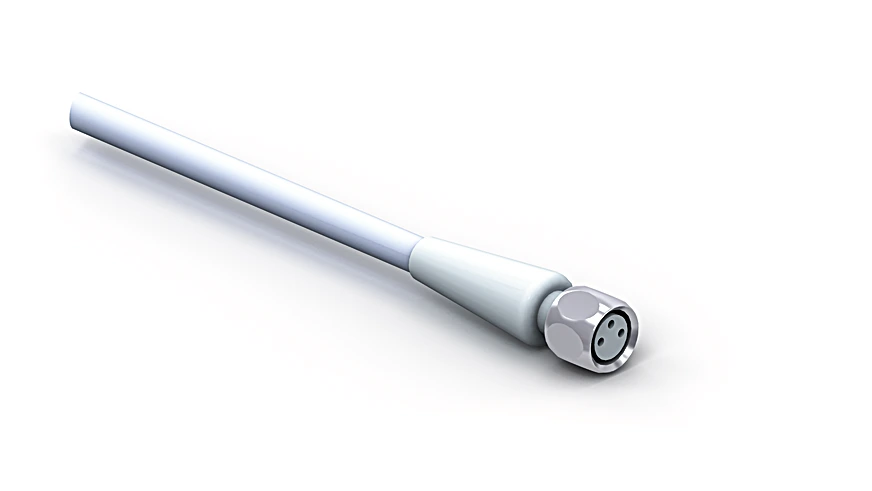

Wenglor ZCGL005 Connection Line M8 × 1; 3-pin

Connection Line M8 × 1; 3-pin.

$63.80
Part Number
  • ZCGL005
Highlights...

Features

  • Ecolab
  • IP69K
  • Washdown design
  • Connection 1: Socket, straight

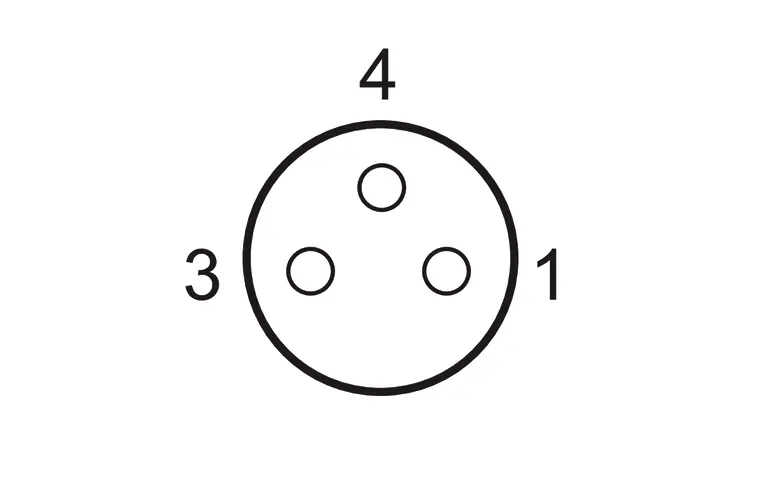

  • Connection mode 1: M8 × 1, 3-pin
  • Connection 2: stripped
  • Torque: 0,6 Nm
  • Coding: A-coding
  • Cable length (L): 10 m
  • Outer diameter (d): 4 mm
  • Wire cross-section: 0.25 mm²
  • Degree of Protection: IP69K
  • Temperature range (fixed installation): -13°F to 176°F
  • Temperature range (moving application): 32°F to 176°F
  • Jacket color: gray
  • Cable Jacket Material: PVC
  • Material Wire Insulation: PVC
  • Material Sleeve Nut: Stainless steel, V4A
  • Bending radius (fixed installation): 5 × d
  • Bending radius (used in motion): 10 × d
  • Weight: 252 g
  • Scope of delivery: 1 × line
  • Packaging unit: 1 Piece
