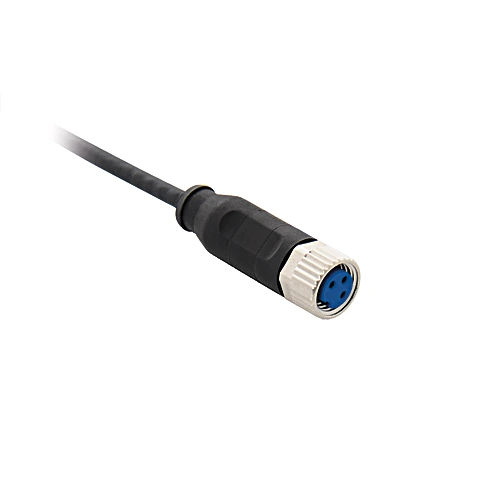

Wenglor ZCGL001 Connection Line M8 × 1; 3-pin

Features

• PUR, straight
• Supply Voltage: ≤ 60 V DC
• Connection 1: Socket, straight

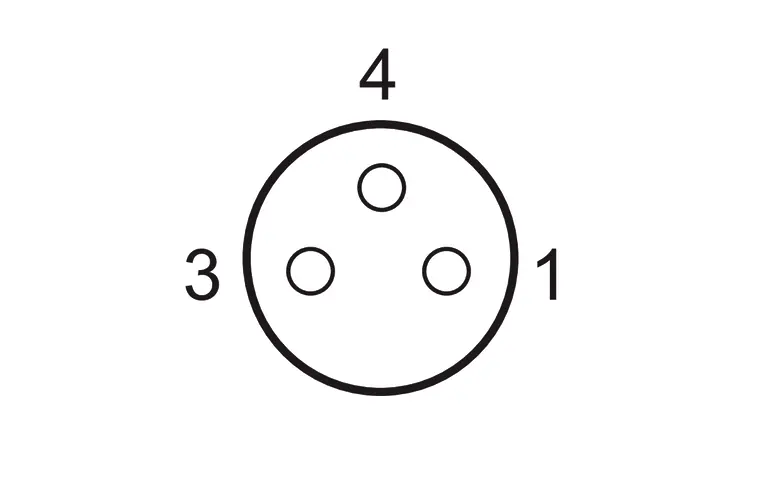

• Connection mode 1: M8 × 1, 3-pin
• Connection 2: stripped
• Torque: M8: 0,4 Nm
• Cable length (L): 24.8 m
• Outer diameter (d): 2.9 mm
• Wire cross-section: 0.5 mm²
• Degree of Protection: IP65, IP67
• Temperature range (fixed installation): -40°F to 176°F
• Temperature range (moving application): -13°F to 176°F
• Cable Jacket Material: Plastic, PUR
• Material Wire Insulation: Plastic, PP
• Material Sleeve Nut: Zinc diecasting, nickel-plated
• Screened: yes
• Weight: 380 g
• Scope of delivery: 1 × line
• Packaging unit: 1 Piece
