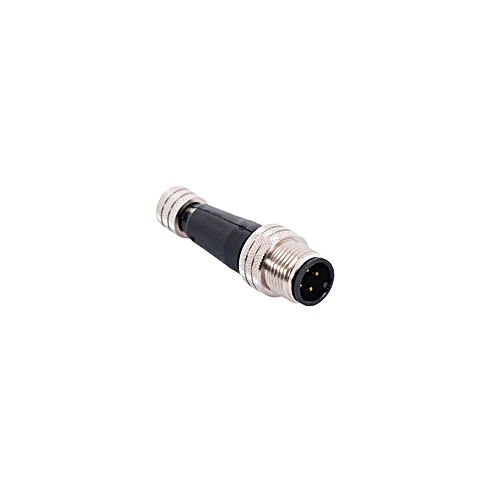

Wenglor ZCFP001 Connection Cable Socket M8 × 1.4-pin – plug M12 × 1.4-pin
Connection Cable Socket M8 × 1.4-pin – plug M12 × 1.4-pin.
$27.20
Part Number
- ZCFP001
Highlights...
- ZCFP001
- By Wenglor
- FREE Shipping on orders of $2,000 or more
Overview
Features
- Socket M8 × 1, straight
- Plug M12 × 1, straight
- Connection 1: Socket, straight
- Connection mode 1: M8 × 1, 4-pin
- Connection 2: Plug, straight
- Connection mode 2: M12 × 1, 4-pin
- Coding: A-coding
- Degree of Protection: IP67
- Temperature Range: 32°F to 122°F
- Material Sleeve Nut: Brass, nickel-plated
- Weight: 17 g
- Scope of delivery: 1 × line
- Packaging unit: 1 Piece
Documents
Spec Sheets
Other

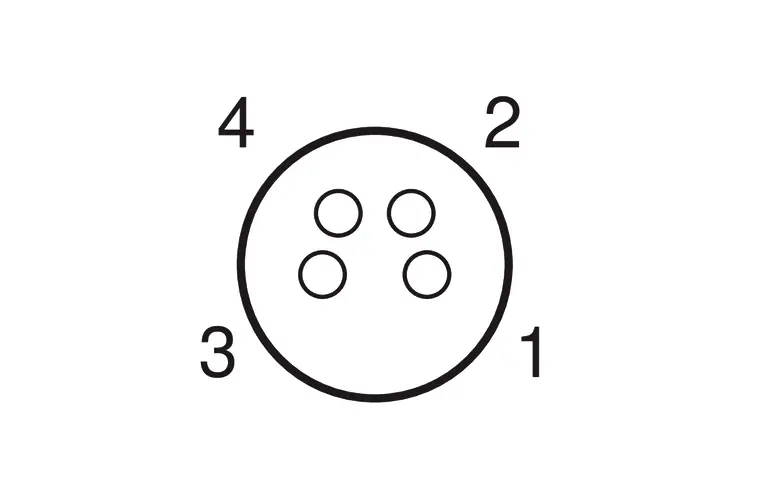

- Wenglor ZCFP001 Connection Cable Socket M8 × 1.4-pin – plug M12 × 1.4-pin Pin assignment-1 (82 KB)

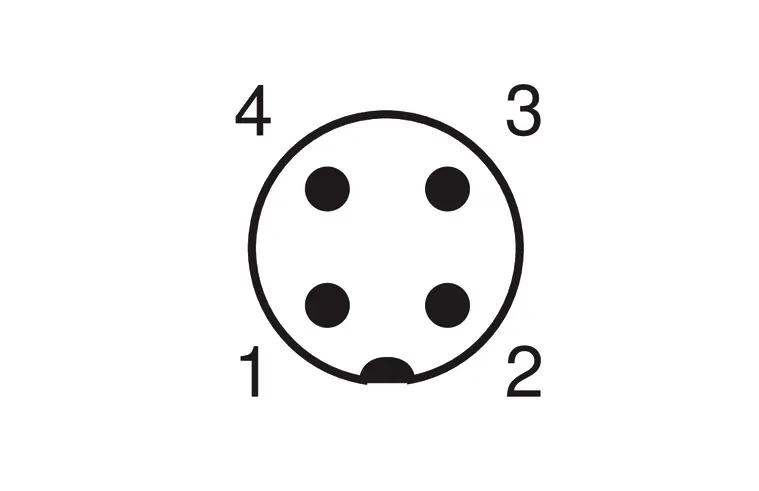

- Wenglor ZCFP001 Connection Cable Socket M8 × 1.4-pin – plug M12 × 1.4-pin Pin assignment-2 (81 KB)

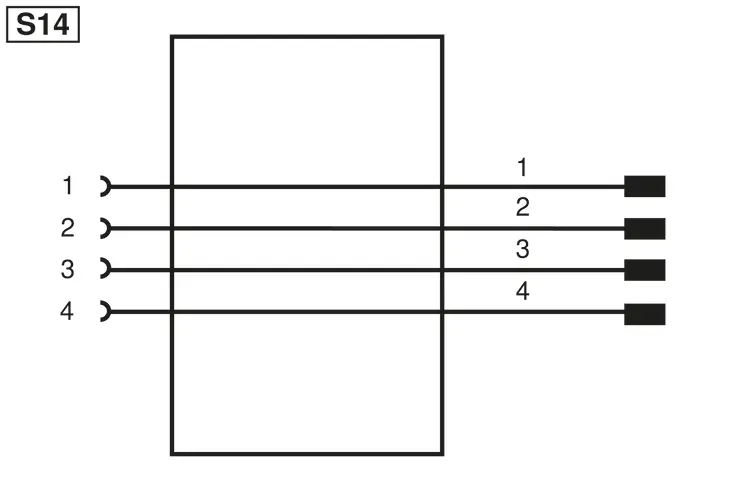

- Wenglor ZCFP001 Connection Cable Socket M8 × 1.4-pin – plug M12 × 1.4-pin Connection Diagram-1 (24 KB)
- Wenglor ZCFP001 Connection Cable Socket M8 × 1.4-pin – plug M12 × 1.4-pin Connection Diagram-2 (38 KB)

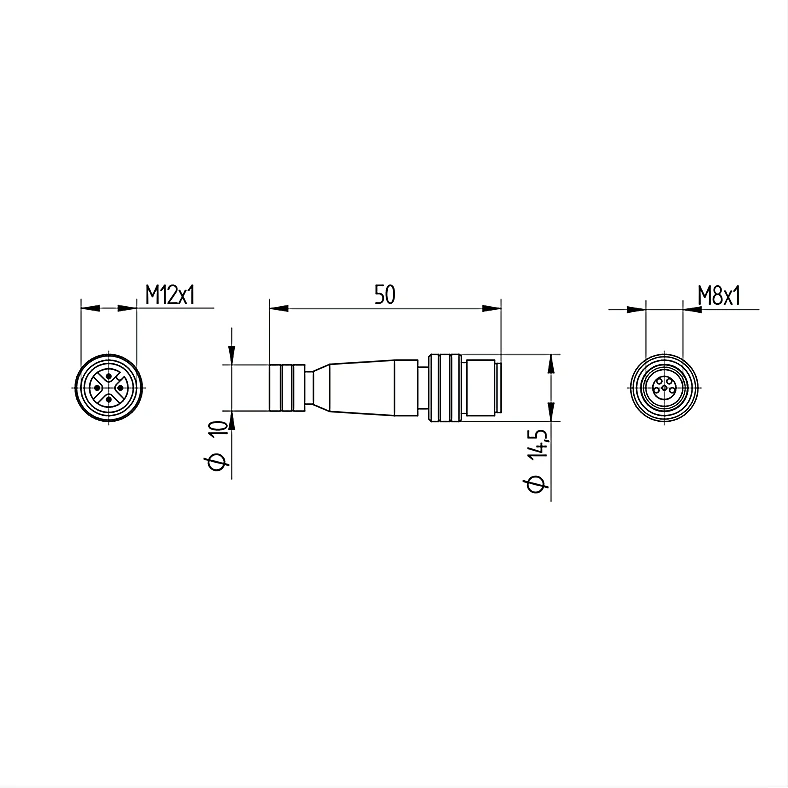

- Wenglor ZCFP001 Connection Cable Socket M8 × 1.4-pin – plug M12 × 1.4-pin Dimensioned Picture (17 KB)
