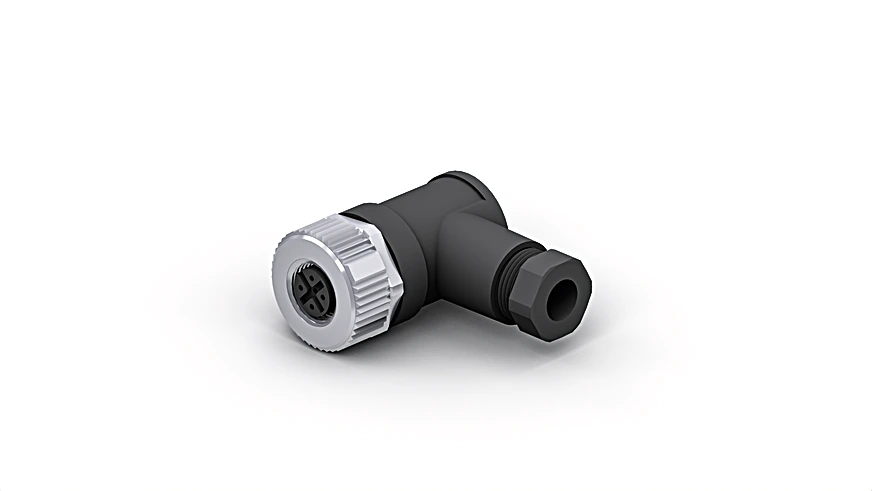

Wenglor ZCCP001 Connection Socket M12 × 1; 4-pin
Connection Socket M12 × 1; 4-pin.
$20.00
Part Number
- ZCCP001
Highlights...
- ZCCP001
- By Wenglor
- FREE Shipping on orders of $2,000 or more
Overview
Features
- Socket M12 × 1, angled
- Connection 1: Socket, angled
- Connection mode 1: M12 × 1, 4-pin
- Torque: M12: 0,6 Nm
- Coding: A-coding
- Outer diameter (d): 4 to 6 mm
- Wire cross-section: 0.75 mm²
- Assembling: Screw Terminal Technology
- Degree of Protection: IP67
- Temperature Range: -40°F to 185°F
- Material Sleeve Nut: Brass, nickel-plated
- Weight: 24 g
- Scope of delivery: 1 × connection socket
- Packaging unit: 1 Piece
Documents
Spec Sheets
Other

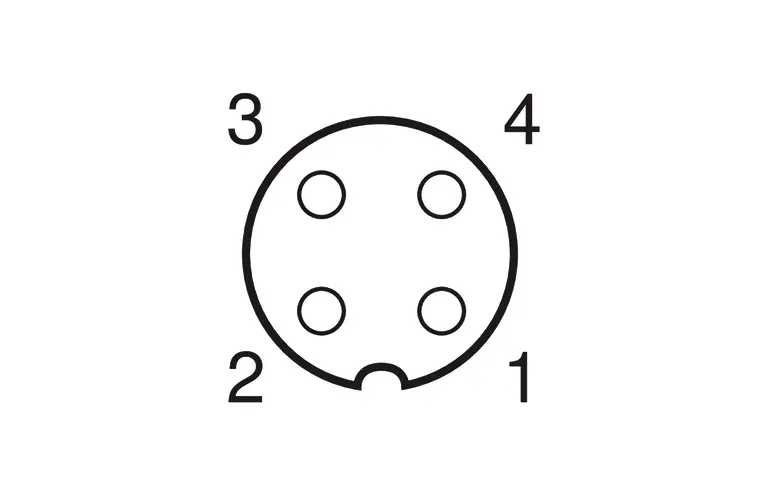

- Wenglor ZCCP001 Connection Socket M12 × 1; 4-pin Pin assignment (82 KB)

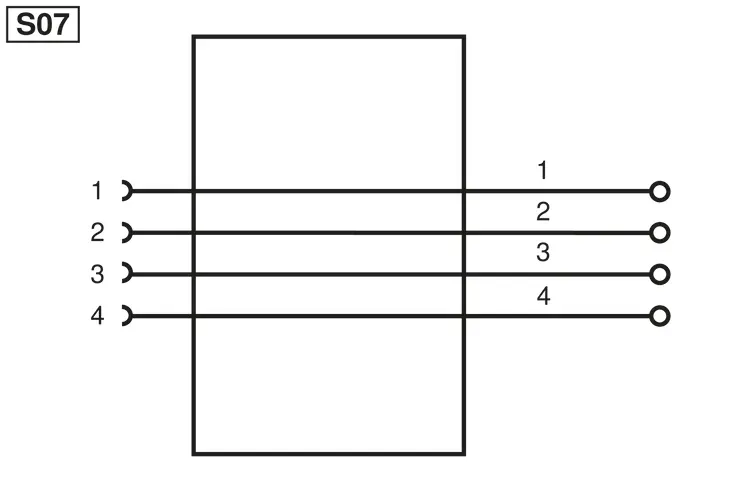

- Wenglor ZCCP001 Connection Socket M12 × 1; 4-pin Connection Diagram-1 (24 KB)
- Wenglor ZCCP001 Connection Socket M12 × 1; 4-pin Connection Diagram-2 (38 KB)

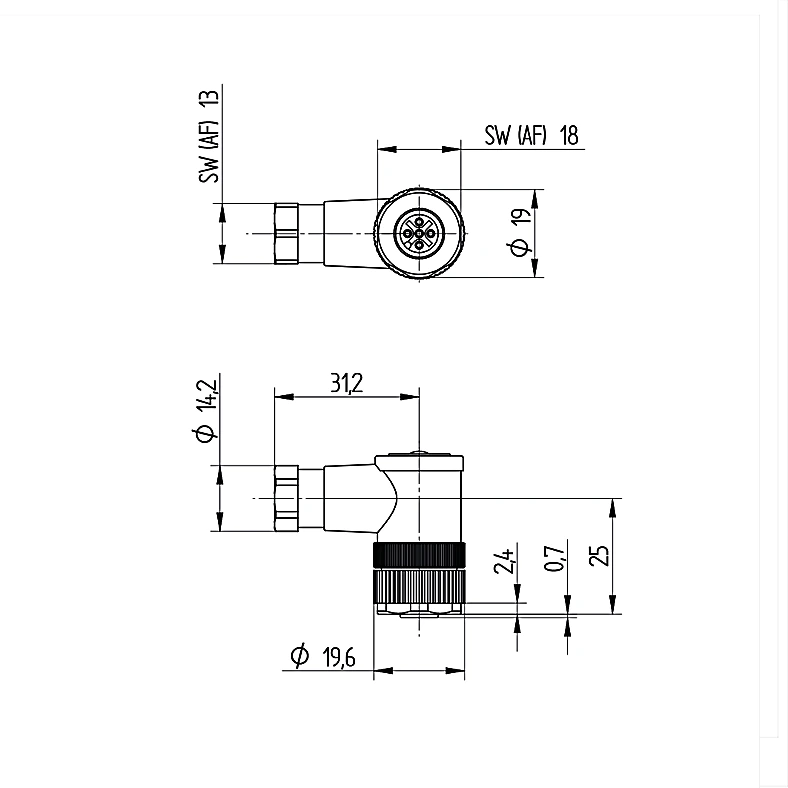

- Wenglor ZCCP001 Connection Socket M12 × 1; 4-pin Dimensioned Picture (22 KB)
