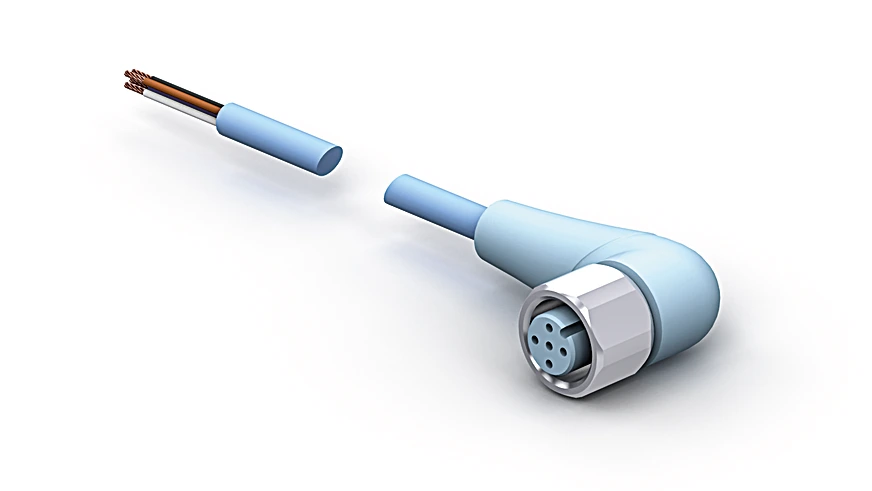

Wenglor ZCCL007 Connection Line M12 × 1; 4-pin

Features

• Protection mode IP69K
• Ecolab
• Suitable for robots
• Drag chain suitable
• TPE-S angled
• Supply Voltage: ≤ 30 V DC
• Connection 1: Socket, angled

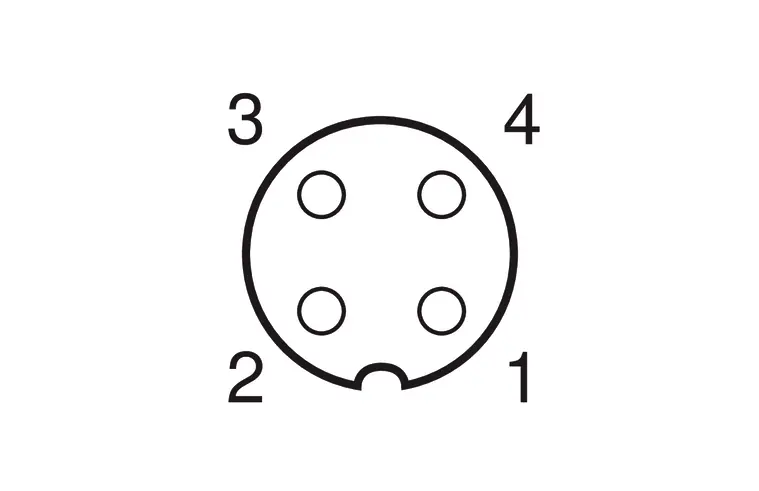

• Connection mode 1: M12 × 1, 4-pin
• Connection 2: stripped
• Torque: M12: 0,6 Nm
• Coding: A-coding
• Cable length (L): 10 m
• Outer diameter (d): 4.7 mm
• Wire cross-section: 0.34 mm²
• Display: LED
• Degree of Protection: IP68, IP69K
• Temperature range (fixed installation): -40°F to 221°F
• Temperature range (moving application): -13°F to 221°F
• Cable Jacket Material: Plastic, TPE-S
• Material Wire Insulation: Plastic, PP
• Material Sleeve Nut: Stainless Steel
• Halogen-free: yes
• Bending radius (fixed installation): 5 × d
• Bending radius (used in motion): 10 × d
• Travel speed (with 5 m horizontal travel distance): ≤ 3 m/s
• Acceleration: ≤ 10 m/s²
• Bending cycles: < 4000000
• Number of torsion cycles: < 2,000,000
• Torsional stress: ± 180°/m
• Torsional speed (cycles/min): 35
• Weight: 280 g
• Scope of delivery: 1 × line
• Packaging unit: 1 Piece
