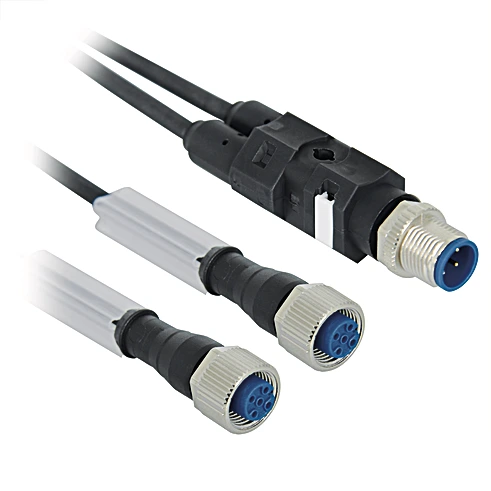

Wenglor ZCBV001 Connection Cable M12 × 1; Y distributor

Connection Cable M12 × 1; Y distributor.

$50.90
Part Number
  • ZCBV001
Highlights...

Features

  • PUR, straight
  • Supply Voltage: ≤ 250 V AC/DC
  • Connection 1: Plug, straight

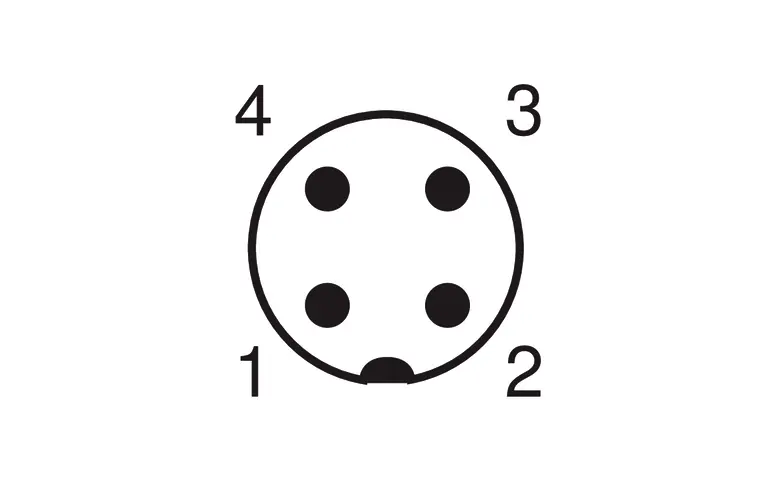

  • Connection mode 1: M12 × 1, 4-pin
  • Connection 2: Socket, straight

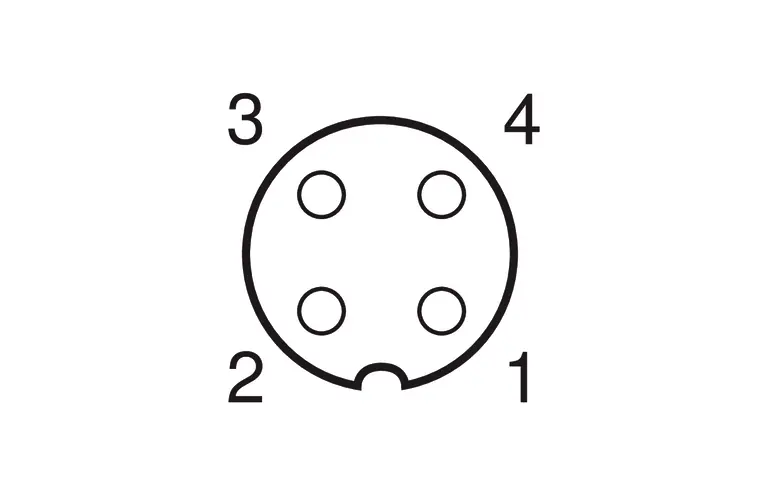

  • Connection mode 2: M12 × 1, 4-pin
  • Torque: M12: 0,6 Nm
  • Coding: A-coding
  • Cable length (L): 300 mm
  • Outer diameter (d): 4.3 mm
  • Wire cross-section: 0.34 mm²
  • Degree of Protection: IP65, IP67
  • Temperature range (fixed installation): -40°F to 176°F
  • Temperature range (moving application): -13°F to 176°F
  • Cable Jacket Material: Plastic, PUR
  • Material Wire Insulation: Plastic, PP
  • Weight: 62 g
  • Scope of delivery: 1 × connection cable
  • Packaging unit: 1 Piece
