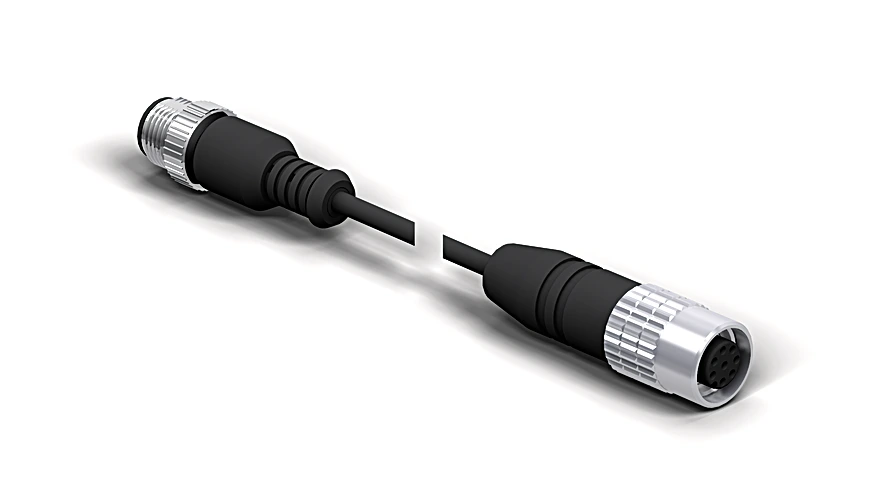

Wenglor ZC7V003 Connection Cable M12 x 1; 8-pin - M12 x 1; 5-pin

Connection Cable M12 x 1; 8-pin - M12 x 1; 5-pin.

$74.10
Part Number
  • ZC7V003
Highlights...

Features

  • Socket M12 × 1, straight
  • Plug M12 × 1, straight
  • Automatic operation preset by means of internal jumper
  • Suitable for receivers with integrated plug or cable end
  • Simplified wiring and initial start-up
  • Supply Voltage: ≤ 300 V AC/DC
  • Connection 1: Socket, straight

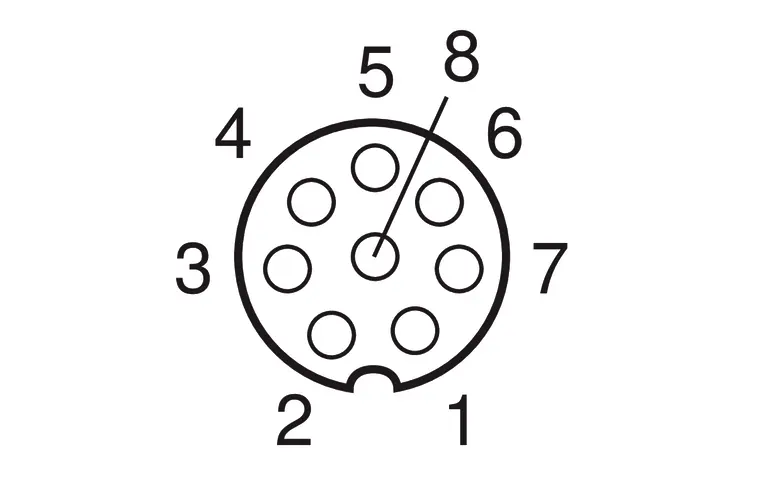

  • Connection mode 1: M12 × 1, 8-pin
  • Connection 2: Plug, straight

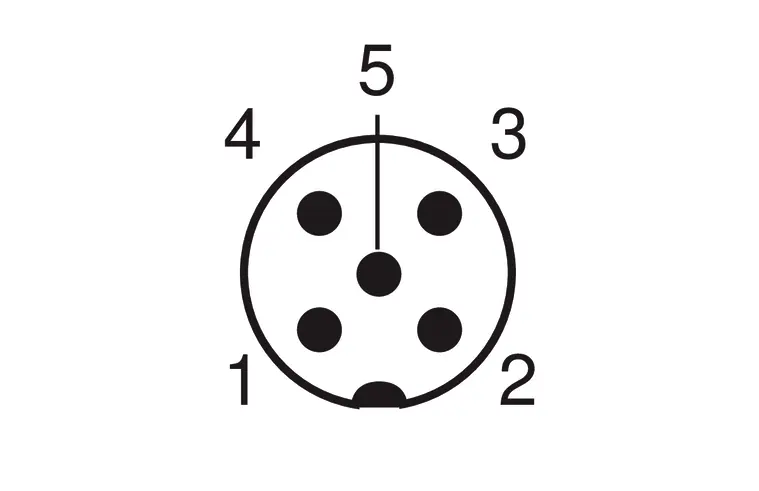

  • Connection mode 2: M12 × 1, 5-pin
  • Coding: A-coding
  • Cable length (L): 200 mm
  • Outer diameter (d): 5 mm
  • Wire cross-section: 0.25 mm²
  • Degree of Protection: IP67
  • Temperature Range: -13°F to 176°F
  • Cable Jacket Material: Plastic, TPU
  • Material Wire Insulation: Plastic, PVC
  • Material Sleeve Nut: Brass, nickel-plated
  • Weight: 32 g
  • Scope of delivery: 1 × connection cable
  • Packaging unit: 1 Piece

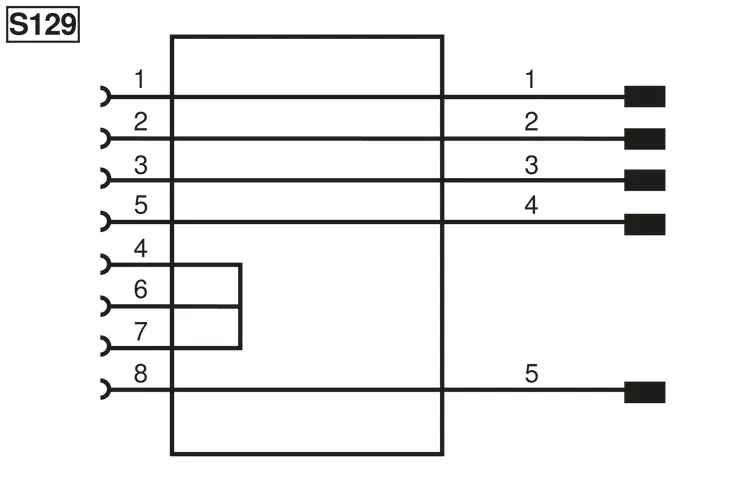

The cable adapts the 8-pin plug of SEMG series receiver devices to 4- or 5-pin connection lines. SEMG devices can thus also be used in existing applications that are already equipped with 4- or 5-pin connection lines. Applications that do not require the restart inhibit and contactor monitoring functions can be implemented with reduced wiring effort.
