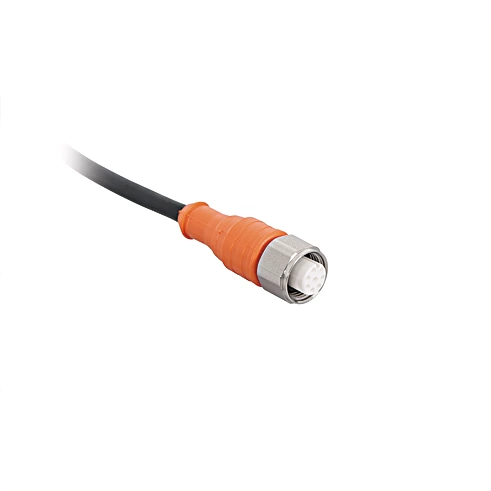

Wenglor ZC7L001 Connection Line M12 × 1; 8-pin

Connection Line M12 × 1; 8-pin.

$52.80
Part Number
  • ZC7L001
Highlights...

Features

  • PVC, straight
  • Protection mode IP69K
  • Supply Voltage: ≤ 36 V AC/DC
  • Connection 1: Socket, straight

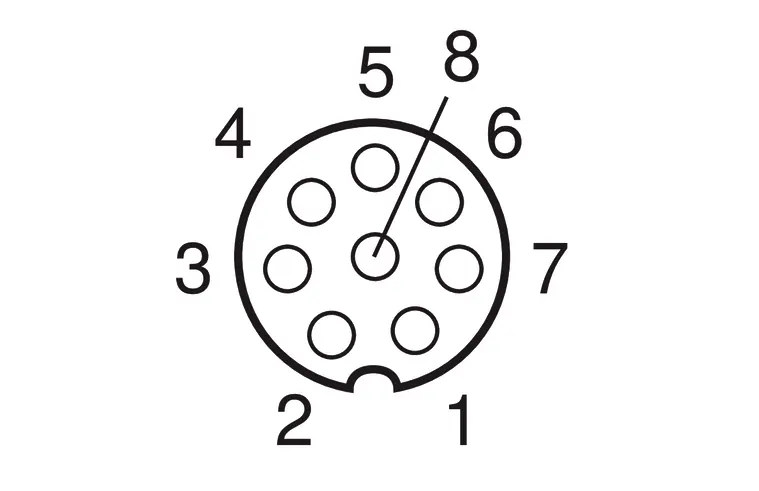

  • Connection mode 1: M12 × 1, 8-pin
  • Connection 2: stripped
  • Torque: M12: 0,7 Nm
  • Coding: A-coding
  • Cable length (L): 10 m
  • Outer diameter (d): 5 mm
  • Wire cross-section: 0.14 mm²
  • Degree of Protection: IP67, IP69K
  • Temperature Range: -13°F to 158°F
  • Cable Jacket Material: PVC
  • Material Wire Insulation: PVC
  • Material Sleeve Nut: Stainless Steel
  • Screened: no
  • Weight: 365 g
  • Scope of delivery: 1 × line
  • Packaging unit: 1 Piece
