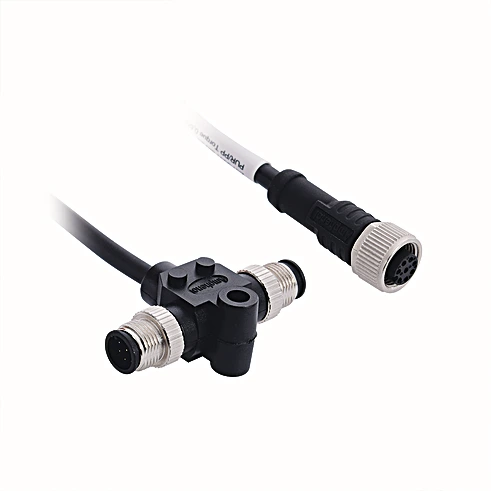

Wenglor ZC7G001 Connection Cable

Connection Cable.

$73.30
Part Number
  • ZC7G001
Highlights...

Features

  • Coding: A-coding
  • Cable length (L): 1 m
  • Outer diameter (d): 5.5 mm
  • Wire cross-section: 0.25 mm²
  • Degree of Protection: IP67
  • Temperature Range: -4°F to 176°F
  • Jacket color: black
  • Cable Jacket Material: Plastic, PUR
  • Material Wire Insulation: Plastic, PP
  • Material Sleeve Nut: Metal
  • Weight: 72 g
  • Scope of delivery: 1 × connection cable
  • Packaging unit: 1 Piece

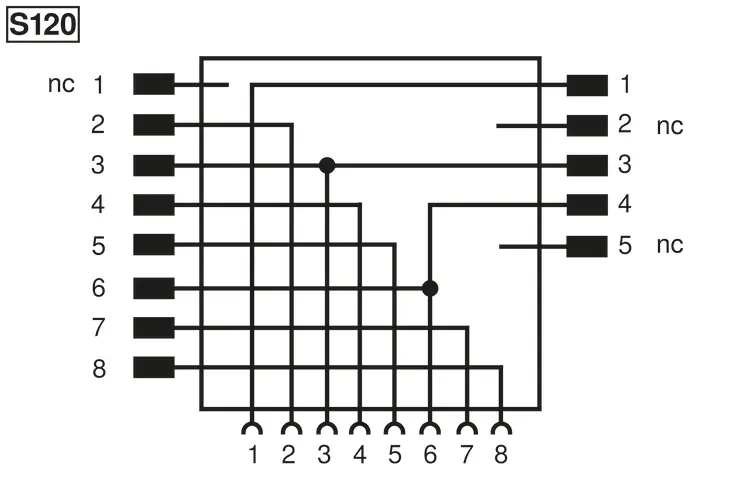

The connection cable in the form of a T-connector makes it possible to use the IO-Link signal from SEFG safety light curtains and SEFB multi-light arrays. This ensures IO-Link signal disconnection and also permits the use of wTeach2 software.
