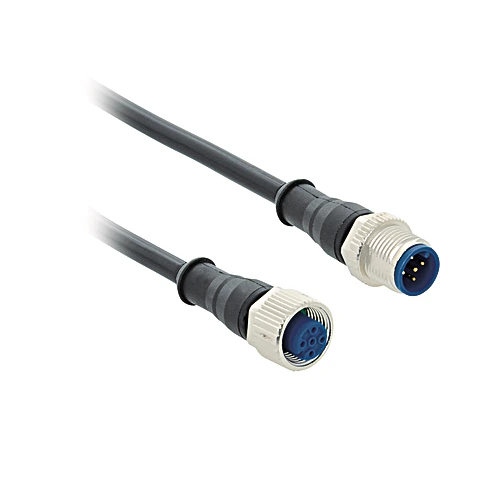

Wenglor ZC4V006 Connection Cable M12 × 1; 5-pin

Connection Cable M12 × 1; 5-pin.

$31.30
Part Number
  • ZC4V006
Highlights...

Features

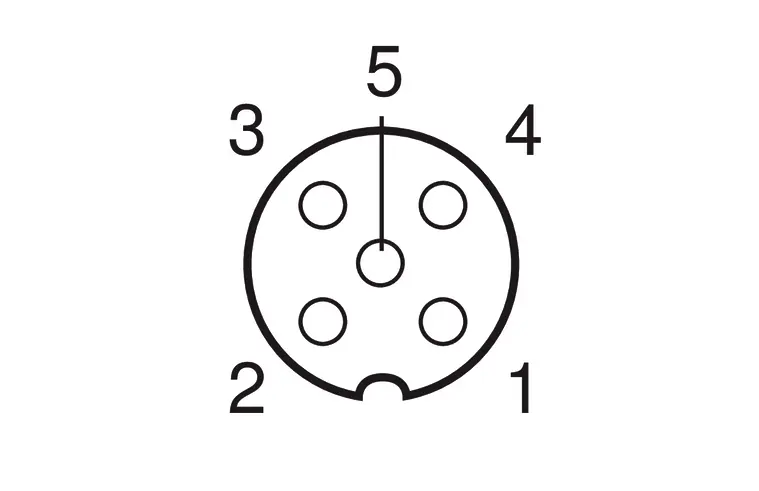

  • Socket M12 × 1, straight

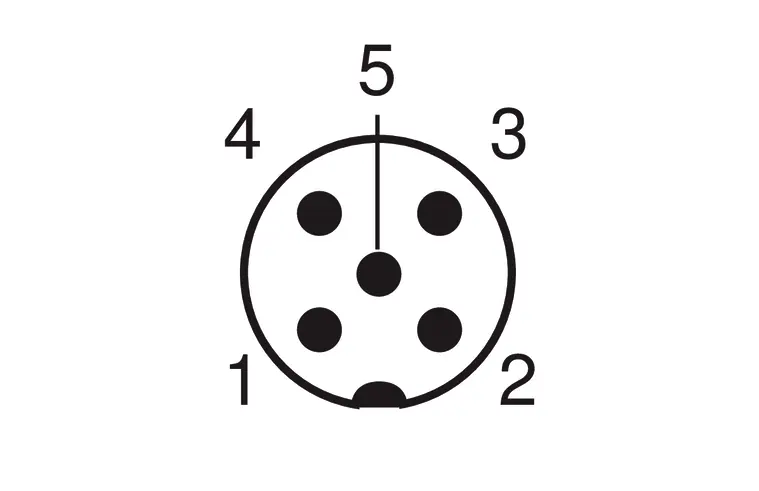

  • Plug M12 × 1, straight
  • Supply Voltage: ≤ 125 V AC/DC
  • Connection 1: Socket, straight
  • Connection mode 1: M12 × 1, 5-pin
  • Connection 2: Plug, straight
  • Connection mode 2: M12 × 1, 5-pin
  • Torque: M12: 0,6 Nm
  • Coding: A-coding
  • Cable length (L): 2 m
  • Outer diameter (d): 5.2 mm
  • Wire cross-section: 0.34 mm²
  • Degree of Protection: IP65, IP67
  • Temperature range (fixed installation): -22°F to 176°F
  • Temperature range (moving application): 23°F to 176°F
  • Cable Jacket Material: Plastic, PVC
  • Material Wire Insulation: Plastic, PVC
  • Material Sleeve Nut: Brass, nickel-plated
  • Weight: 106 g
  • Scope of delivery: 1 × line
  • Packaging unit: 1 Piece
