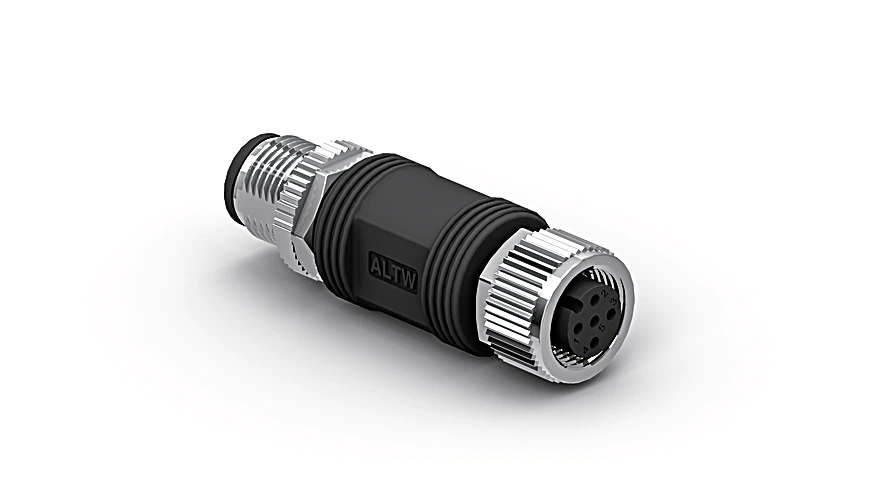

Wenglor ZC4P001 Adapter socket M12 × 1.5-pin – plug M12 × 1.8-pin
Adapter socket M12 × 1.5-pin – plug M12 × 1.8-pin.
$27.30
Part Number
- ZC4P001
Highlights...
- ZC4P001
- By Wenglor
- FREE Shipping on orders of $2,000 or more
Overview
Features
- Plug M12 × 1, straight
- Socket M12 × 1, straight
- For digital sensors
- Connection 1: Socket, straight
- Connection mode 1: M12 × 1, 5-pin
- Connection 2: Plug, straight
- Connection mode 2: M12 × 1, 8-pin
- Coding: A-coding
- Degree of Protection: IP67
- Material Sleeve Nut: Brass, nickel-plated
- Weight: 14 g
- Scope of delivery: 1 × adapter
- Packaging unit: 1 Piece
Documents
Spec Sheets
Other

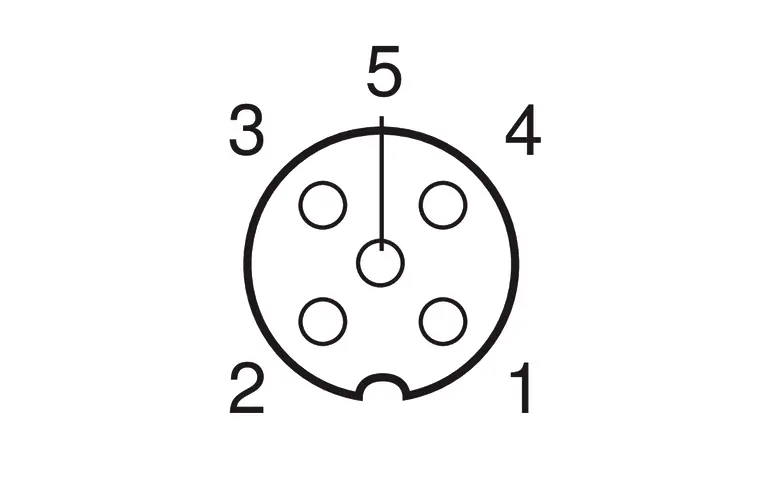

- Wenglor ZC4P001 Adapter socket M12 × 1.5-pin – plug M12 × 1.8-pin Pin assignment-1 (84 KB)

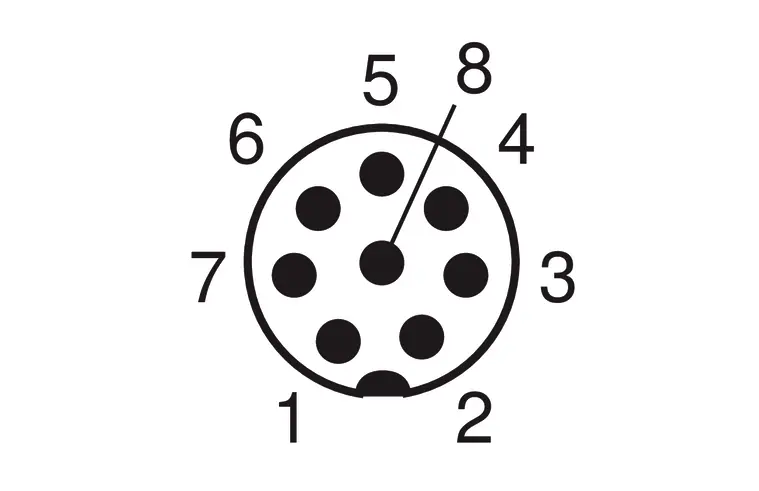

- Wenglor ZC4P001 Adapter socket M12 × 1.5-pin – plug M12 × 1.8-pin Pin assignment-2 (86 KB)

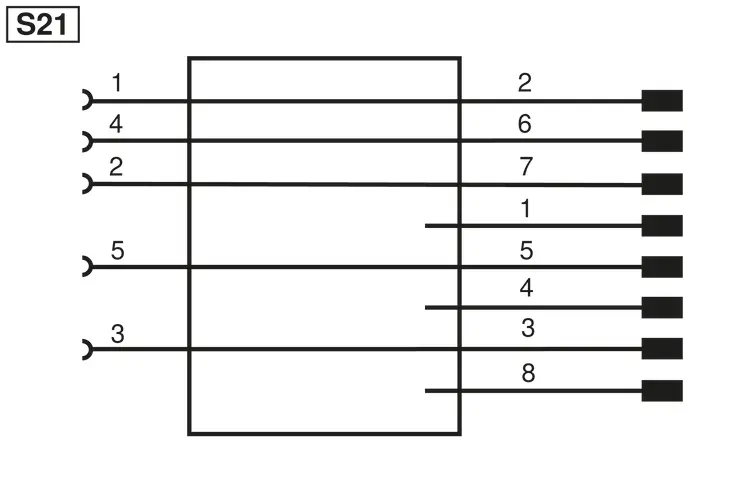

- Wenglor ZC4P001 Adapter socket M12 × 1.5-pin – plug M12 × 1.8-pin Connection Diagram-1 (30 KB)
- Wenglor ZC4P001 Adapter socket M12 × 1.5-pin – plug M12 × 1.8-pin Connection Diagram-2 (38 KB)
