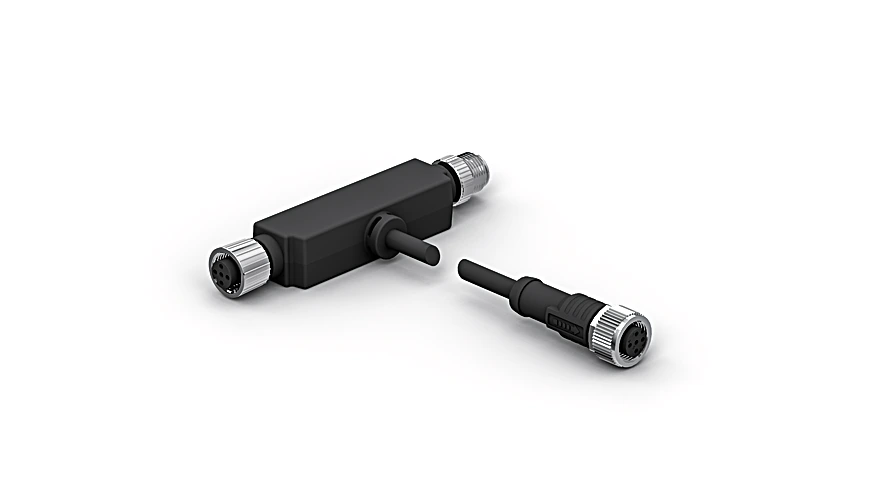

Wenglor ZC4G004 Connection Cable M12×1, T-splitter

Connection Cable M12×1, T-splitter.

$94.30
Part Number
  • ZC4G004
Highlights...

Features

  • Socket M12 × 1, angled
  • Plug M12 × 1, straight
  • Plug M12 × 1, angled
  • Connection 1: Plug, straight
  • Connection mode 1: M12 × 1, 5-pin
  • Connection 2: Socket, angled / Plug, angled
  • Connection mode 2: M12 × 1, 5-pin
  • Coding: A-coding
  • Cable length (L): 600 mm
  • Outer diameter (d): 4.8 mm
  • Degree of Protection: IP67
  • Temperature Range: 14°F to 221°F
  • Jacket color: black
  • Cable Jacket Material: Plastic, PVC
  • Material Sleeve Nut: Metal
  • Weight: 84 g
  • Scope of delivery: 1 × line
  • Packaging unit: 1 Piece
