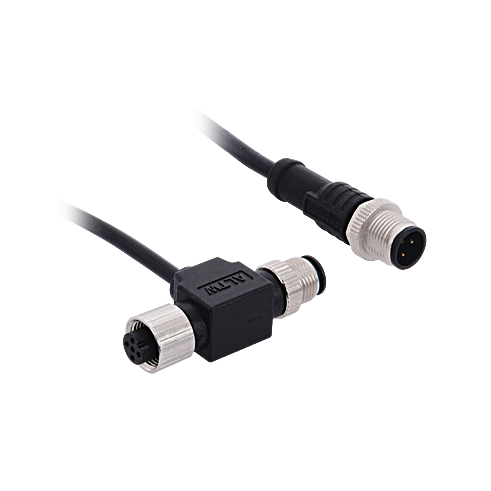

Wenglor ZC4G002 Connection Cable M12 × 1, T-splitter for illumination

Connection Cable M12 × 1, T-splitter for illumination.

$94.30
Part Number
  • ZC4G002
Highlights...

Features

  • Socket M12 × 1, angled
  • Plug M12 × 1, straight
  • Plug M12 × 1, angled
  • Connection 1: Plug, straight
  • Connection mode 1: M12 × 1, 5-pin
  • Connection 2: Socket, angled / Plug, angled
  • Connection mode 2: M12 × 1, 5-pin
  • Coding: A-coding
  • Cable length (L): 600 mm
  • Outer diameter (d): 4.8 mm
  • Degree of Protection: IP67
  • Temperature Range: 14°F to 221°F
  • Jacket color: black
  • Cable Jacket Material: Plastic, PVC
  • Material Sleeve Nut: Metal
  • Weight: 51 g
  • Scope of delivery: 1 × line
  • Packaging unit: 1 Piece
  • Complementary Products: ZDCG004 connection cable, ZDCG005 connection cable

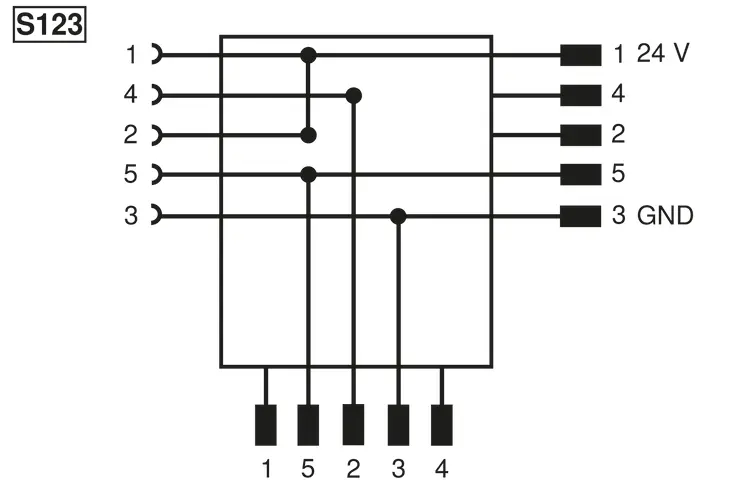

The cable, combined with the Y distributor, ensures that the lighting is synchronized in flash mode. The socket on the T-piece can be connected directly to the lighting. The plug on the T-piece serves as an input for the voltage supply (24 V DC).
