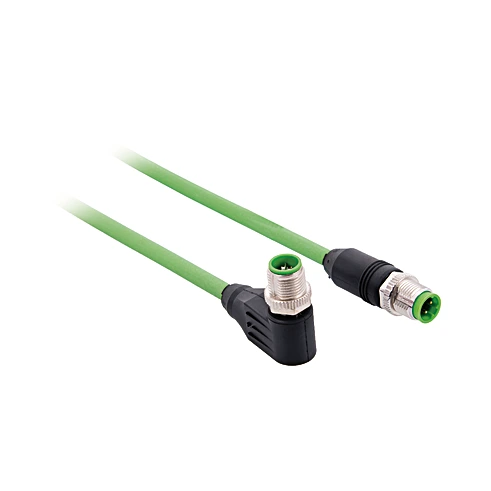

Wenglor ZC1V018 Connection Cable M12 × 1; 8-pin, X-coding - M12 × 1; 4-pin, D-coding

Features

• Screened
• Supply Voltage: ≤ 50 V AC/DC
• Transmission rate: 100 Mbit/s
• Connection 1: Plug, angled

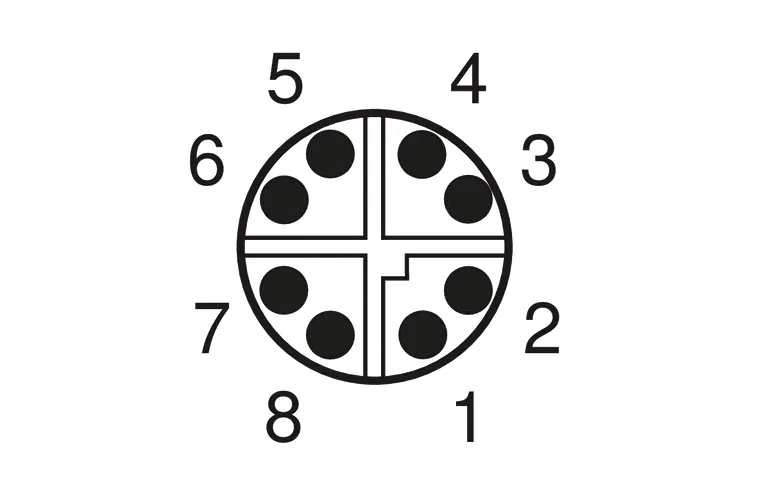

• Connection mode 1: M12 × 1, 8-pin, X-cod.
• Connection 2: Plug, straight

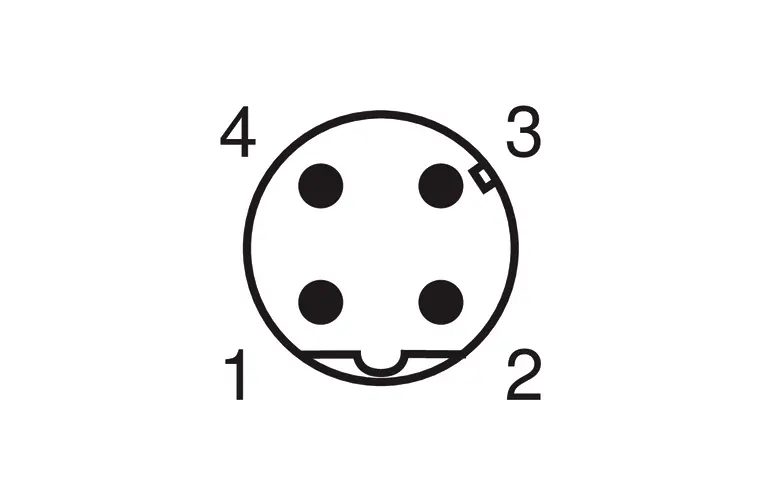

• Connection mode 2: M12 × 1, 4-pin, D-cod.
• Torque: M12: 0,6 Nm
• Coding: X-coding, D-coding
• Cable length (L): 2 m
• Outer diameter (d): 6 mm
• Wire cross-section: 0.22 mm²
• Degree of Protection: IP67
• Temperature range (fixed installation): -40°F to 176°F
• Temperature range (moving application): -22°F to 158°F
• Jacket color: green
• Cable Jacket Material: Plastic, PUR
• Material Wire Insulation: Plastic, PE
• Material Sleeve Nut: Zinc diecasting, nickel-plated
• Category: CAT 5
• Screened: yes
• Halogen-free: yes
• Drag Chain Suitable: yes
• Bending radius (fixed installation): 5 × d
• Bending radius (used in motion): 12 × d
• Travel speed (with 5 m horizontal travel distance): ≤ 3,3 m/s
• Acceleration: ≤ 2 m/s²
• Bending cycles: ≤ 35000000
• Weight: 139 g
• Scope of delivery: 1 × line
• Packaging unit: 1 Piece
