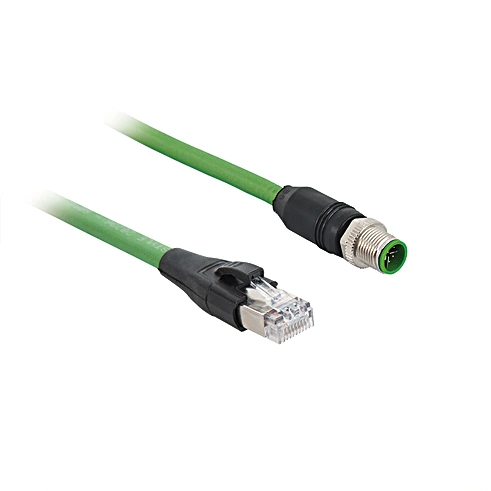

Wenglor ZC1V001 Connection Cable M12 × 1; 8-pin, X-coding - RJ45; 8-pin

Connection Cable M12 × 1; 8-pin, X-coding - RJ45; 8-pin.

$142.00
Part Number
  • ZC1V001
Highlights...

Features

  • PUR, straight
  • Screened
  • Supply Voltage: ≤ 50 V AC/DC
  • Connection 1: Plug, straight
  • Connection mode 1: M12 × 1, 8-pin, X-cod.
  • Connection 2: Plug, straight
  • Connection mode 2: RJ45, 8-pin
  • Torque: M12: 0,6 Nm
  • Coding: X-coding
  • Cable length (L): 2 m
  • Outer diameter (d): 6.4 mm
  • Wire cross-section: 0.14 mm²
  • Degree of Protection: IP67
  • Temperature range (fixed installation): -22°F to 176°F
  • Temperature range (moving application): 14°F to 122°F
  • Cable Jacket Material: Plastic, PUR
  • Material Wire Insulation: Plastic, PE
  • Material Sleeve Nut: Zinc diecasting, nickel-plated
  • Category: CAT 6A
  • Screened: yes
  • Halogen-free: yes
  • Drag Chain Suitable: no
  • Weight: 117 g
  • Scope of delivery: 1 × line
  • Packaging unit: 1 Piece
