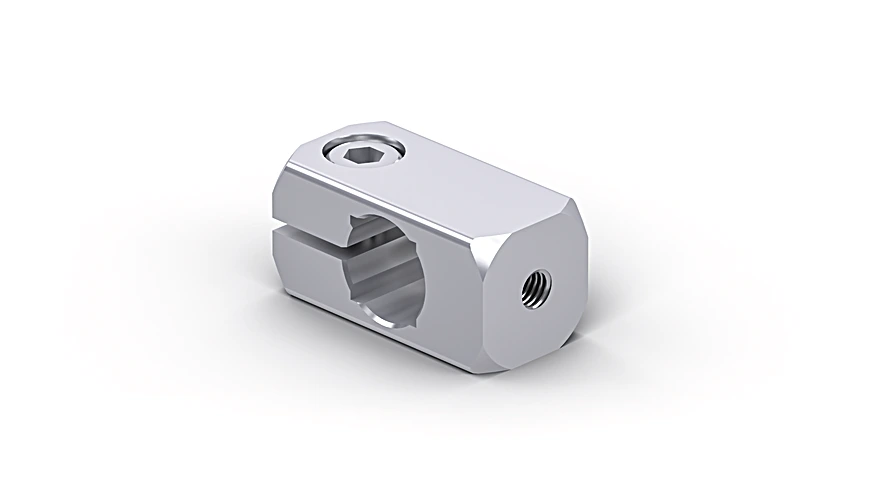

Wenglor ZBSY004 Retaining Clamp for Ø 12 mm mounting bar/10 × 10 mm mounting profile

Retaining Clamp for Ø 12 mm mounting bar/10 × 10 mm mounting profile.

$28.10
Part Number
  • ZBSY004
Highlights...

Features

  • Suitable for square and round bars
  • Reflector holder for M5 screw mounting type
  • Sensor holder in combination with Z1KC002 adapter
  • Parallel shifting possible without adjusting the angle
  • Thread: M5
  • Mounting type, device-side: can be screwed
  • Mounting type, system-side: Terminals, screws
  • Material: Aluminum, anodised

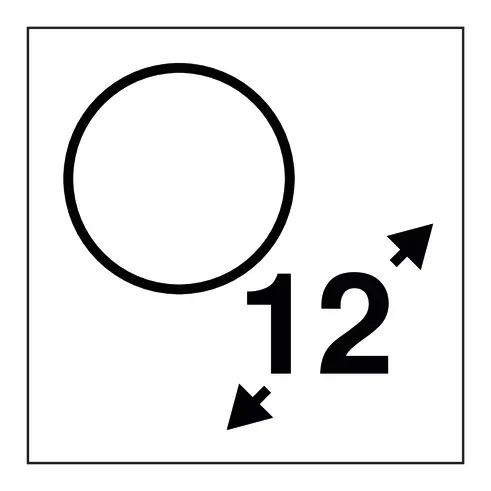

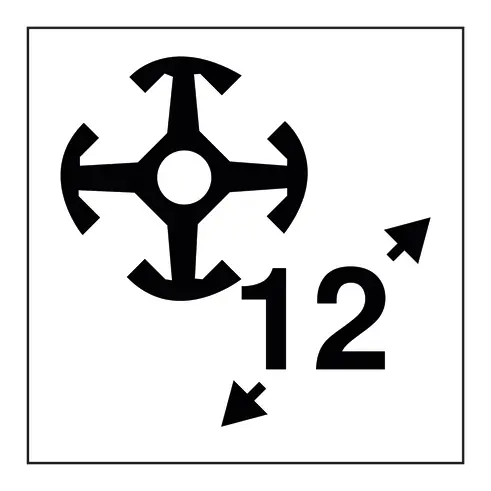

  • for Round Profile Diameter: 12 mm

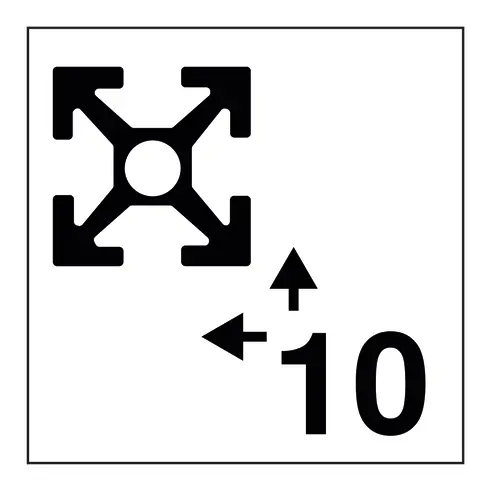

  • For edge length: 10 × 10 mm
  • Clamp retainer tightening torque: 3 Nm
  • Weight: 18 g
  • Scope of delivery: 1 × retaining clamp
  • Packaging unit: 1 Piece
  • Use: for mounting bar, For mounting profile, As a connecting element
  • Complementary Products: Z1KC002 adapter
The retaining clamps function as a connection technology and can be clamped on to mounting profiles and/or rods.
