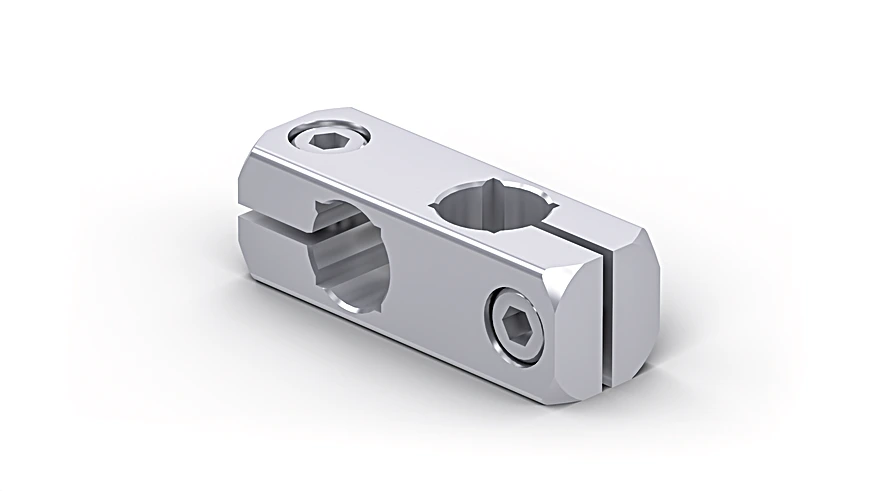

Wenglor ZBSY002 Retaining Clamp for Ø 12 mm mounting bar/10 × 10 mm mounting profile
Retaining Clamp for Ø 12 mm mounting bar/10 × 10 mm mounting profile.
$27.20
Part Number
- ZBSY002
Highlights...
- ZBSY002
- By Wenglor
- FREE Shipping on orders of $2,000 or more
Overview
Features
- Screw-type technology
- Suitable for mounting profiles and round bars
- Connects the mounting profile and rods vertically to each other
- Thread: M5
- Mounting type, device-side: Terminals, screws
- Mounting type, system-side: Aluminum profile
- Material: Aluminum, anodised / Stainless Steel
- for Round Profile Diameter: 12 mm
- For edge length: 10 × 10 mm
- Weight: 24 g
- Scope of delivery: 1 × retaining clamp
- Packaging unit: 1 Piece
- Use: for mounting bar, For mounting profile, As a connecting element
Description
The retaining clamps function as a connection technology and can be clamped on to mounting profiles and/or rods.
Documents
Spec Sheets
Other

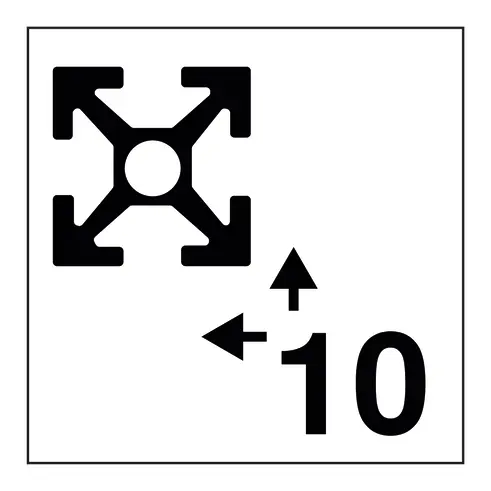

- Wenglor ZBSY002 Retaining Clamp for Ø 12 mm mounting bar/10 × 10 mm mounting profile Contour types-1 (28 KB)

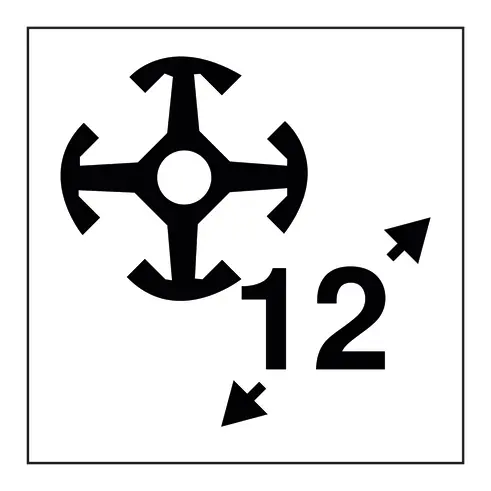

- Wenglor ZBSY002 Retaining Clamp for Ø 12 mm mounting bar/10 × 10 mm mounting profile Contour types-2 (31 KB)

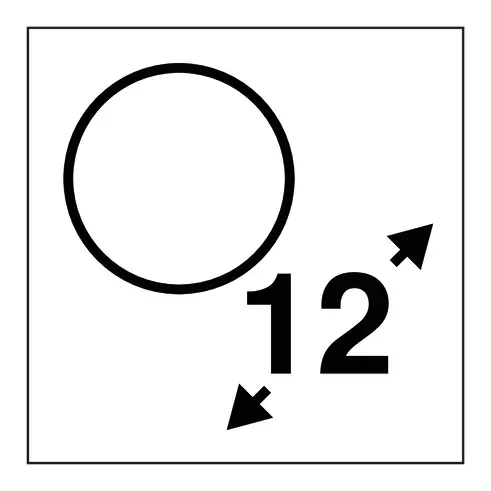

- Wenglor ZBSY002 Retaining Clamp for Ø 12 mm mounting bar/10 × 10 mm mounting profile Contour types-3 (28 KB)

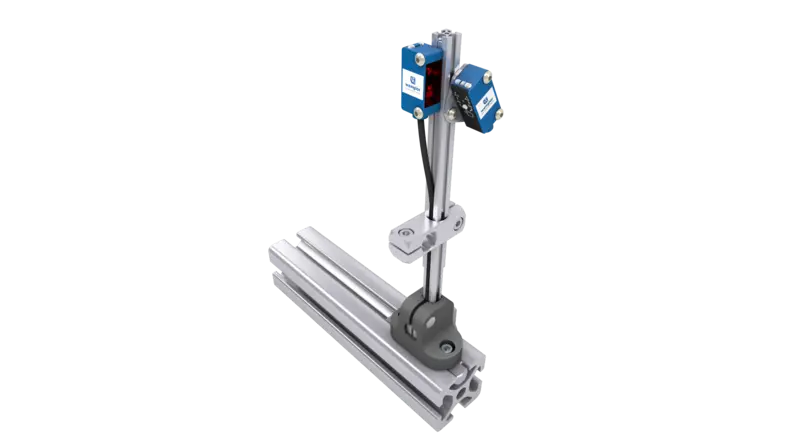

- Wenglor ZBSY002 Retaining Clamp for Ø 12 mm mounting bar/10 × 10 mm mounting profile Exploded view (12 KB)

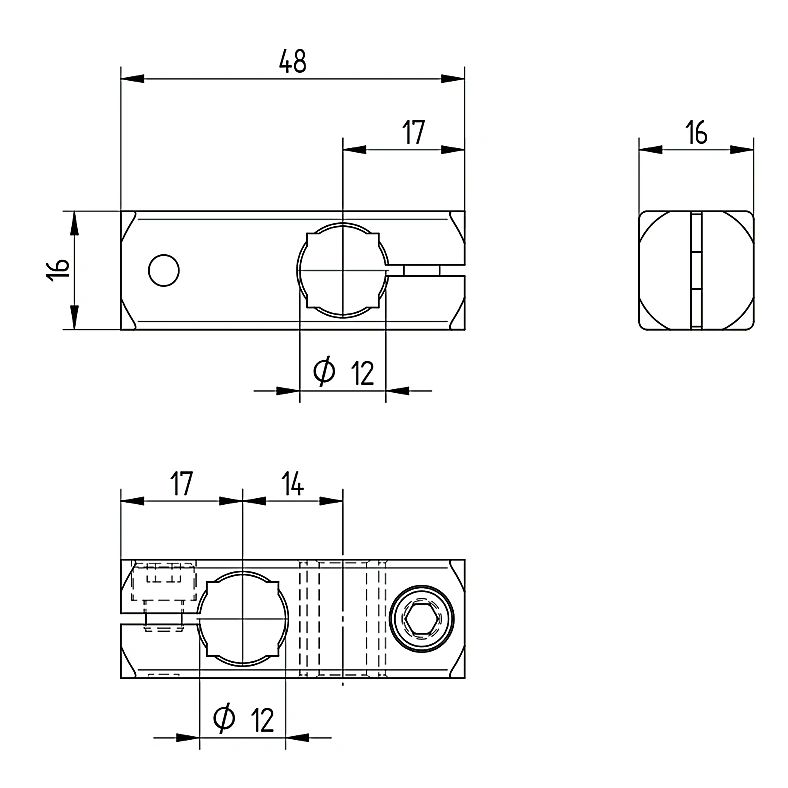

- Wenglor ZBSY002 Retaining Clamp for Ø 12 mm mounting bar/10 × 10 mm mounting profile Dimensioned Pic (25 KB)
