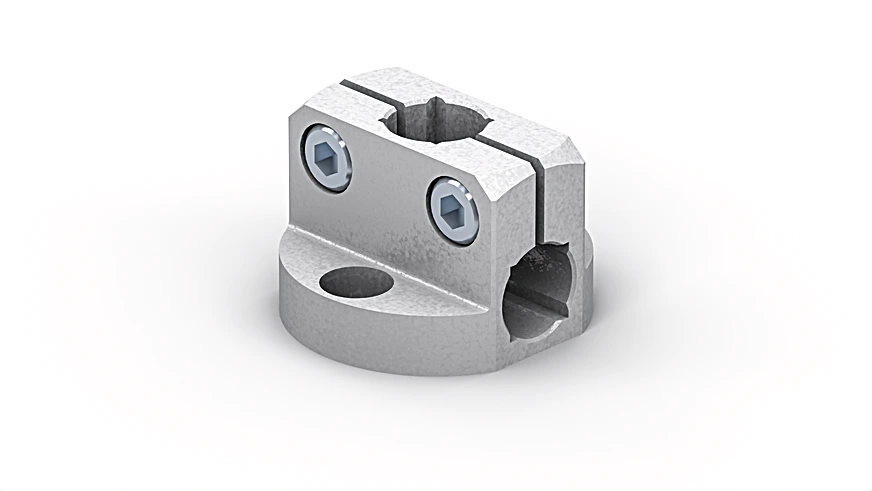

Wenglor ZBSY001 Retaining Clamp for Ø 12 mm mounting bar/10 × 10 mm mounting profile

Retaining Clamp for Ø 12 mm mounting bar/10 × 10 mm mounting profile.

$50.70
Part Number
  • ZBSY001
Highlights...

Features

  • Screw-type technology
  • Easy installation on aluminum system profiles
  • Optional mounting on plates
  • Diameter: 38 mm
  • Thread: M5
  • Mounting type, device-side: Terminals, screws
  • Mounting type, system-side: Screwable with slot nut
  • Material: Aluminum, anodised

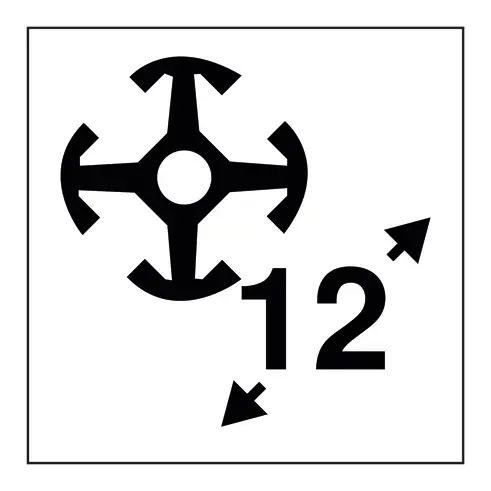

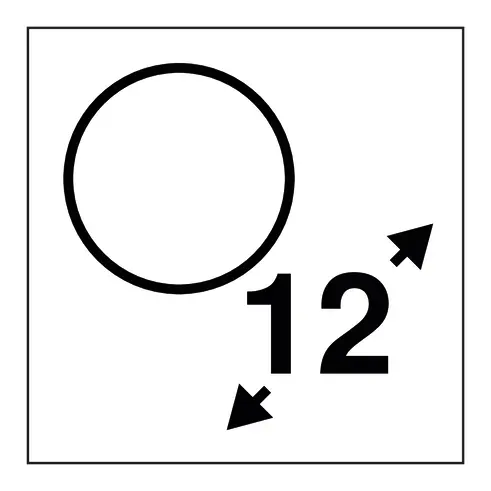

  • for Round Profile Diameter: 12 mm

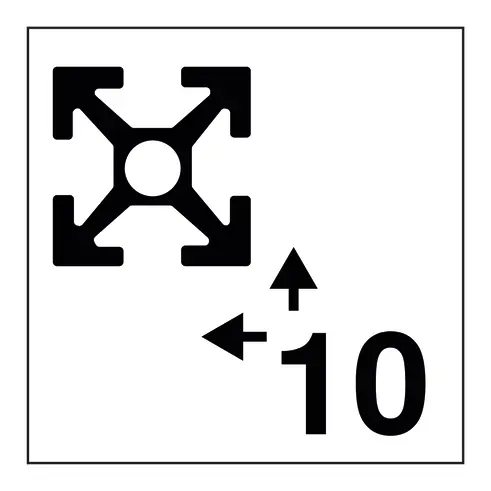

  • For edge length: 10 × 10 mm
  • Weight: 33 g
  • Scope of delivery: 1 × retaining clamp
  • Packaging unit: 1 Piece
  • Use: for mounting bar, For mounting profile, As a base holder
The retaining clamps function as rod profile holders and can be mounted on aluminum profiles, for example. Mounting profiles and rods can be inserted and clamped from above and at the sides.
