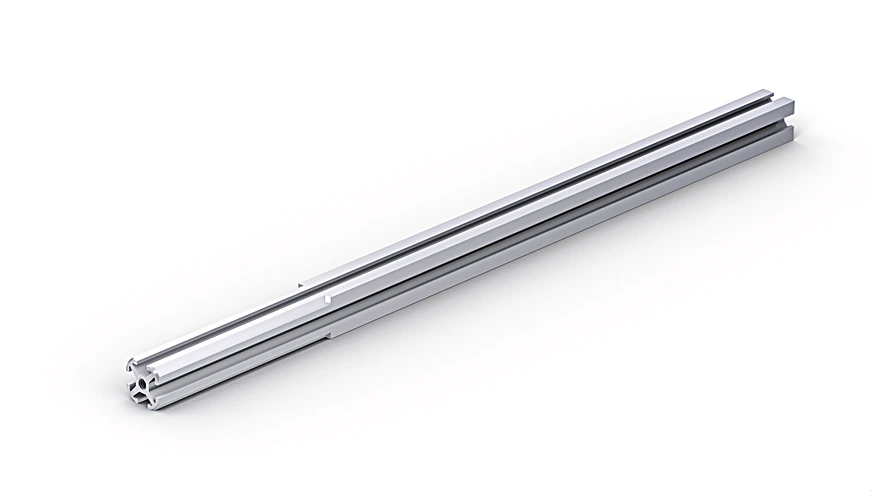

Wenglor ZBPW202 Mounting profile 10 × 10 mm / Ø 12 mm

Mounting profile 10 × 10 mm / Ø 12 mm.

$24.00
Part Number
  • ZBPW202
Highlights...

Features

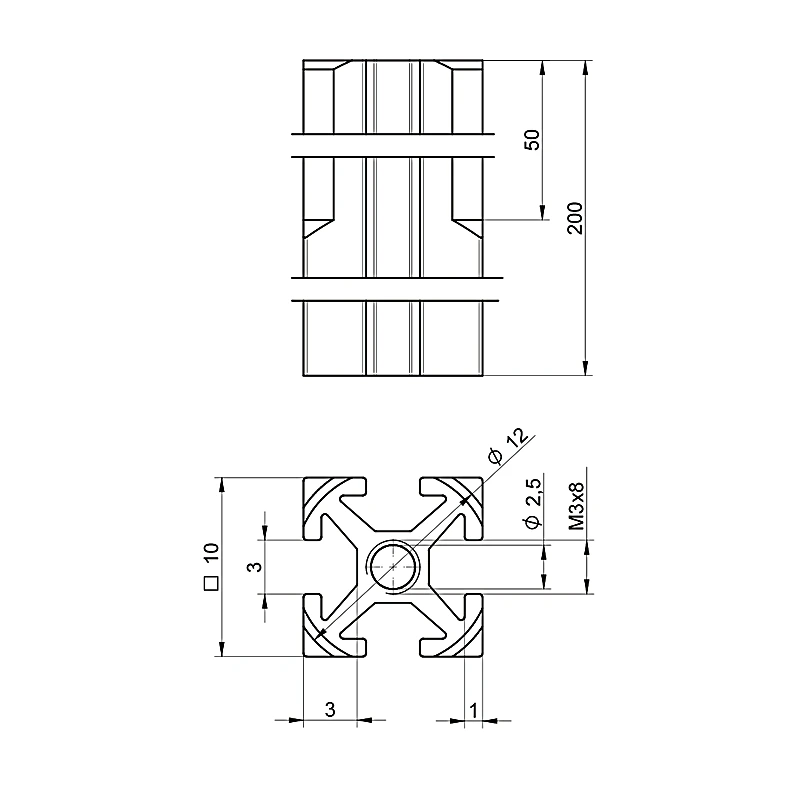

  • 10 × 10 mm square profile and Ø 12 mm
  • Profile length: 200 mm with T-slot
  • Flexible alignment options
  • Thread: M3 × 8 mm
  • Mounting type, system-side: Retaining clamp
  • Material: Aluminum, anodised
  • Surface treatment: Clear anodized

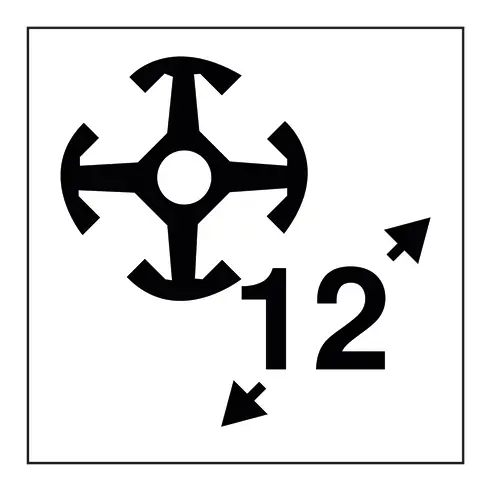

  • for Round Profile Diameter: 12 mm *

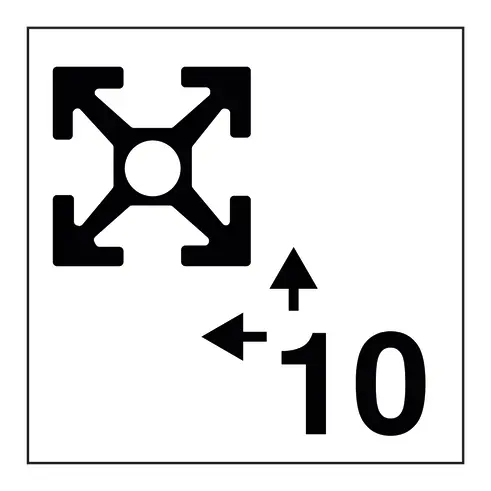

  • For edge length: 10 × 10 mm
  • Rod length: 200 mm
  • Weight: 23 g
  • Scope of delivery: 1 × mounting profile
  • Packaging unit: 1 Piece
Thanks to the T-slot on all four sides, the innovative mounting profile is ideal for mounting the miniature design and other items. The mounting profile can be cut individually to smaller lengths.
