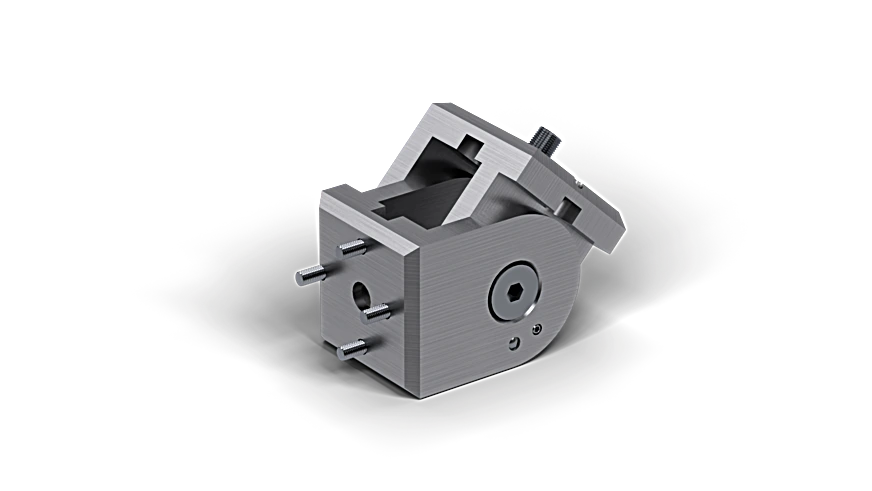

Wenglor ZBAZ001 Bar Clamp

Bar Clamp.

$120.00
Part Number
  • ZBAZ001
Highlights...

Features

  • Mounting on aluminum profiles
  • Simple installation
  • Flexible alignment options
  • Mounting type, device-side: Screwable with slot nut
  • Mounting type, system-side: Aluminum profile
  • Material: Aluminum, anodised
  • Weight: 256 g

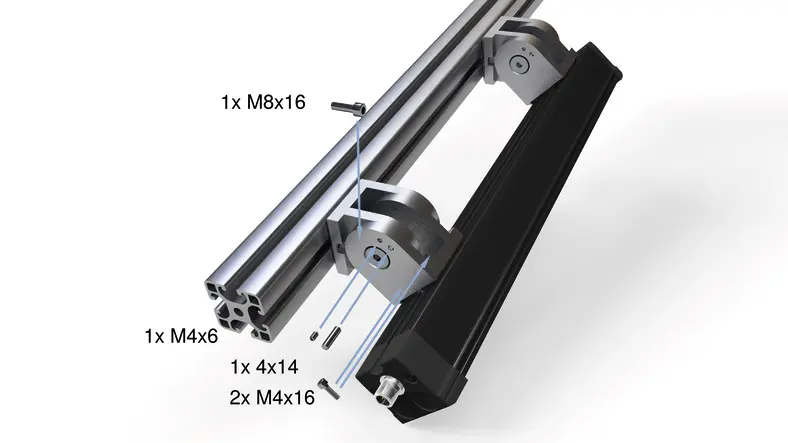

  • Scope of delivery: 1 × bar clamp, 1 × screw (M8×16), 2 × screw (M4×16), 1 × setscrew (M4×6), 1 x locking pin (4×14)
  • Packaging unit: 1 Piece
This bar clamp enables the correct attachment of illumination technology to aluminum profiles. The system allows for 180° rotation in the vertical plane. It is advisable to use multiple bar clamps depending on the size of the product to be secured.
