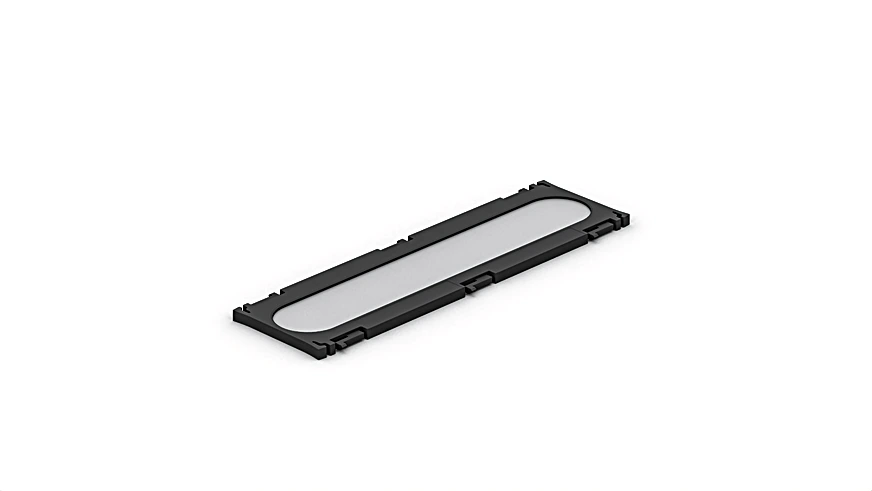

Wenglor ZBAG004 Angle Changer Line ± 9…16° beam angle, for bar light

Angle Changer Line ± 9…16° beam angle, for bar light.

$44.90
Part Number
  • ZBAG004
Highlights...

Features

  • Quick and easy beam-angle change, ideal for project changes and feasibility studies
  • Increased homogeneity
  • Costs reduced by the use of smaller luminaires
  • Create patented curve effect to reduce LED hot spots
  • Improved scanning rate
  • Beam angle: ± 9 to 16 °
  • Polarization Filter: no
  • Housing Material: Plastic, ABS, Plastic, PC, Plastic, PVAL, Plastic, TAC
  • Weight: 7 g
  • Complementary Products: LBA, LBO, LBL, LBS, LBF bar light
wenglor ZBAG0xx are optical accessories for the LBA bar lights. They are small optical diffusers that increase the beam angle emitted from the bar light. This allows the user class leading flexibility from a single light source. The angle changers allow the user to create a variation of light outputs on a single product, enabling patented lighting techniques such as the curve effect. The angle changer widens the beam angle of the LBA bar lights up to the specified value of the opening angle stated in the datasheet.
