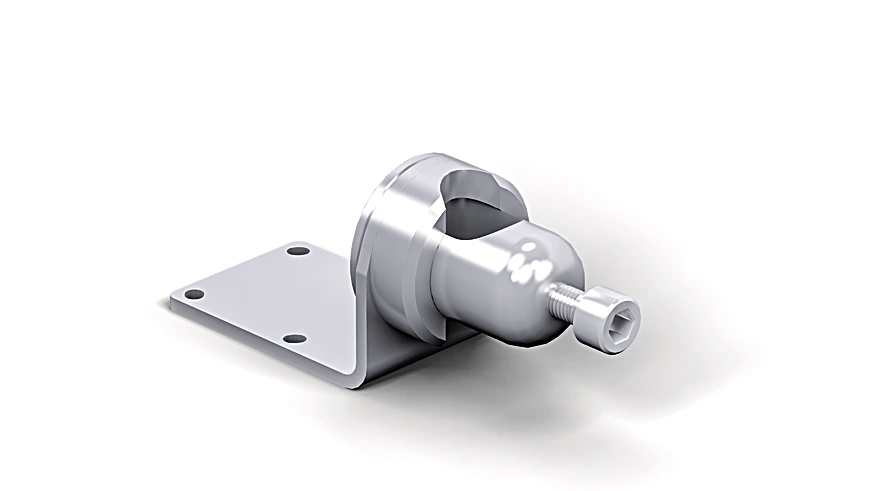

Wenglor ZB6Z001 Mounting for 49 × 29 × 29 mm (B6)

Mounting for 49 × 29 × 29 mm (B6).

$43.60
Part Number
  • ZB6Z001
Highlights...

Features

  • Stainless steel
  • Simple installation
  • Flexible alignment options
  • Mounting type, device-side: Screwable to mounting plate
  • Mounting type, system-side: Mounting bar
  • Material Mounting Head: Stainless steel, V2A (1.4305/303)
  • Material Mounting Plate: Stainless steel, V2A (1.4301/304)

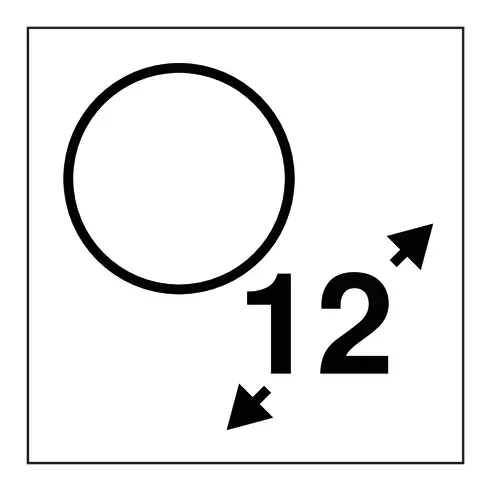

  • for Round Profile Diameter: 8 to 13 mm
  • Weight: 130 g
  • Packaging unit: 1 Piece
  • Use: for square housing

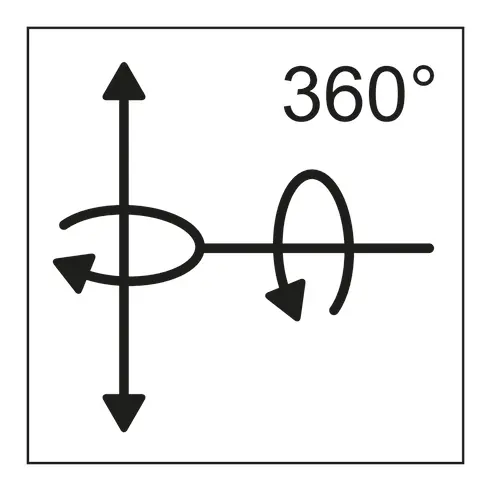

The mounting allows wenglor sensors and reflectors to be easily adjusted and rotated 360° on the vertical and horizontal planes.
