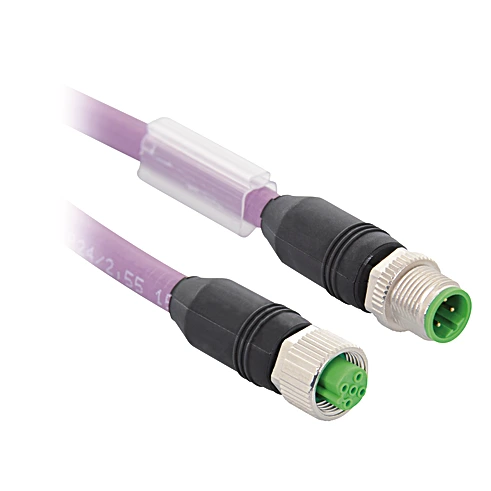

Wenglor ZAV52R201 Connection Cable M12 × 1; 2-pin, B-coding

Features

• Halogen free, drag chain suitability
• PUR, straight
• Screened
• Connection 1: Socket, straight

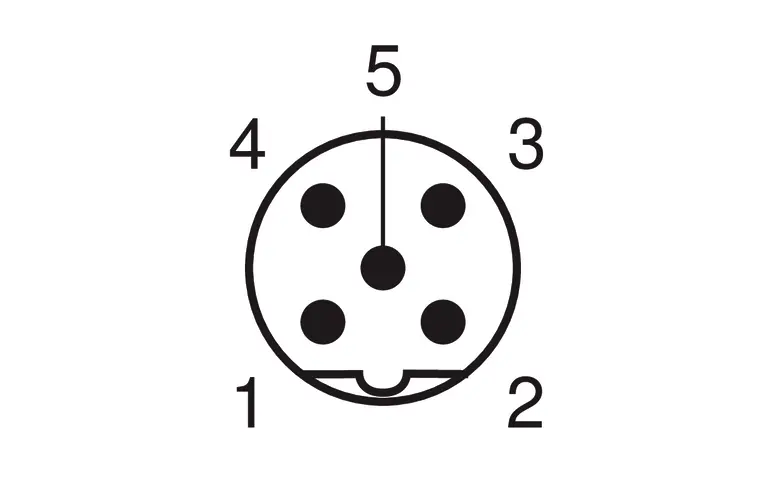

• Connection mode 1: M12 × 1, 2-pin, B-cod.
• Connection 2: Plug, straight

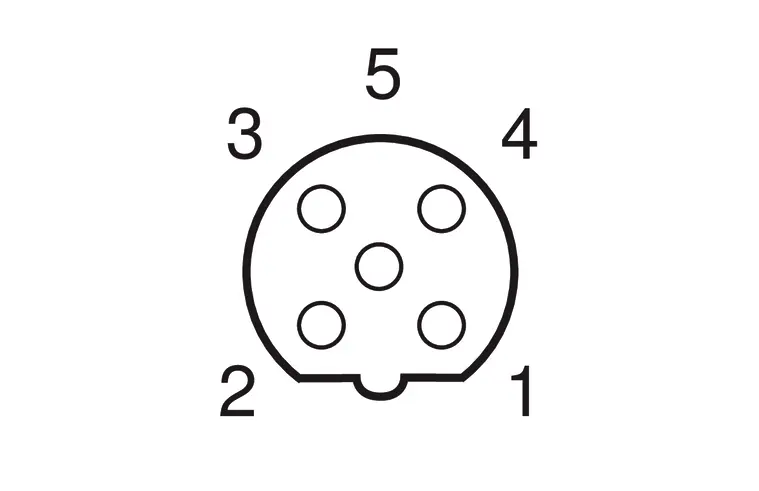

• Connection mode 2: M12 × 1, 2-pin, B-cod.
• Torque: M12: 0,6 Nm
• Coding: B-coding
• Cable length (L): 2 m
• Outer diameter (d): 7.8 mm
• Wire cross-section: 0.64 mm²
• Degree of Protection: IP67
• Temperature Range: -4°F to 176°F
• Cable Jacket Material: Plastic, PUR
• Material Wire Insulation: Plastic, PE
• Material Sleeve Nut: Zinc diecasting
• Screened: yes
• Halogen-free: yes
• Drag Chain Suitable: yes
• Bending radius (fixed installation): 10 × d
• Bending radius (used in motion): 15 × d
• Bending cycles: 10000000
• Weight: 172 g
• Scope of delivery: 1 × connection cable
• Packaging unit: 1 Piece
