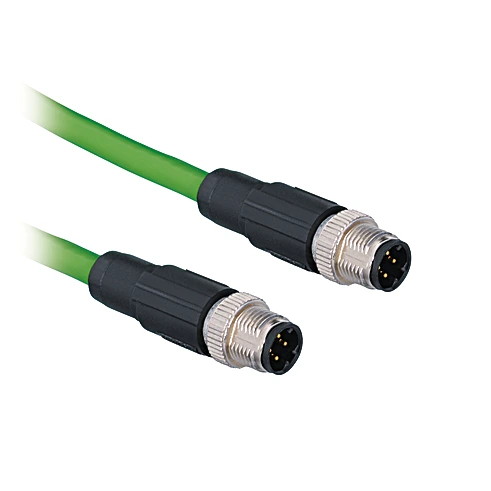

Wenglor ZAV51R601 Connection Cable M12 × 1; 4-pin, D-coding

Features

• Drag chain suitable
• PUR, straight
• Supply Voltage: ≤ 60 V DC
• Connection 1: Plug, straight
• Connection mode 1: M12 × 1, 4-pin, D-cod.
• Connection 2: Plug, straight
• Connection mode 2: M12 × 1, 4-pin, D-cod.
• Torque: M12: 0,6 Nm
• Coding: D-coding
• Cable length (L): 10 m
• Outer diameter (d): 6.7 mm
• Wire cross-section: 0.34 mm²
• Degree of Protection: IP67
• Temperature range (fixed installation): -13°F to 158°F
• Temperature range (moving application): -4°F to 140°F
• Cable Jacket Material: Plastic, PUR
• Material Wire Insulation: Plastic, PO
• Material Sleeve Nut: Zinc diecasting
• Category: CAT 5
• Screened: yes
• Halogen-free: yes
• Drag Chain Suitable: yes
• Bending radius (fixed installation): 5 × d
• Bending radius (used in motion): 15 × d
• Bending cycles: 2000000
• Weight: 688 g
• Scope of delivery: 1 × connection cable
• Packaging unit: 1 Piece
