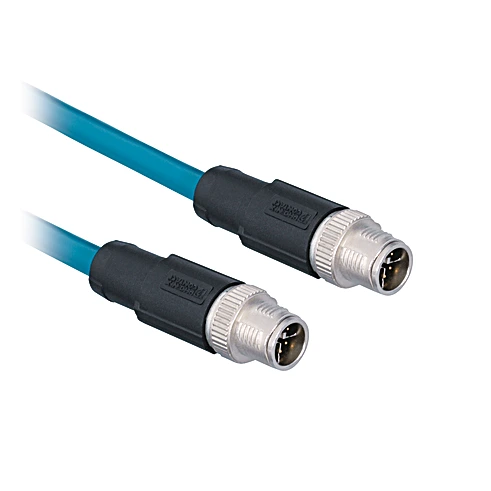

Wenglor ZAV50R501 Connection Cable M12 × 1; 8-pin, X-coding

Features

• PUR, straight
• Screened
• Supply Voltage: ≤ 125 V AC/DC
• Connection 1: Plug, straight

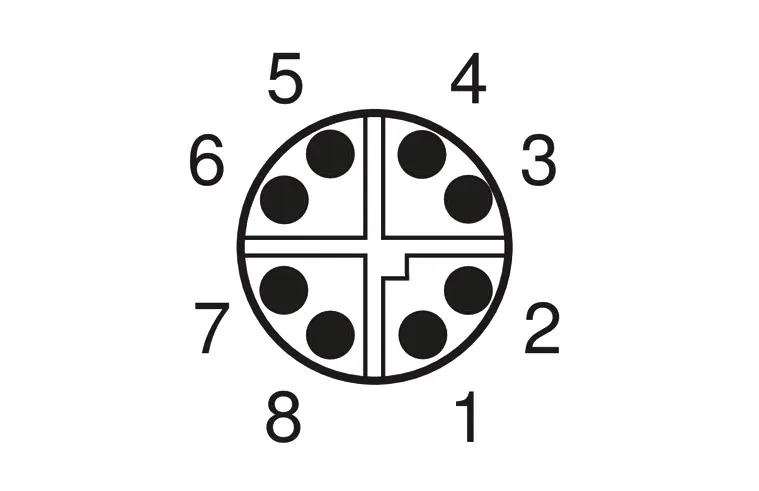

• Connection mode 1: M12 × 1, 8-pin, X-cod.
• Connection 2: Plug, straight
• Connection mode 2: M12 × 1, 8-pin, X-cod.
• Torque: M12: 0,4 Nm
• Coding: X-coding
• Cable length (L): 5 m
• Outer diameter (d): 6.4 mm
• Wire cross-section: 0.14 mm²
• Degree of Protection: IP67
• Temperature range (fixed installation): -40°F to 158°F
• Temperature range (moving application): 14°F to 122°F
• Cable Jacket Material: Plastic, PUR
• Material Wire Insulation: Plastic, PE
• Category: CAT 6A
• Screened: yes
• Halogen-free: yes
• Drag Chain Suitable: no
• Weight: 236 g
• Scope of delivery: 1 × connection cable
• Packaging unit: 1 Piece
