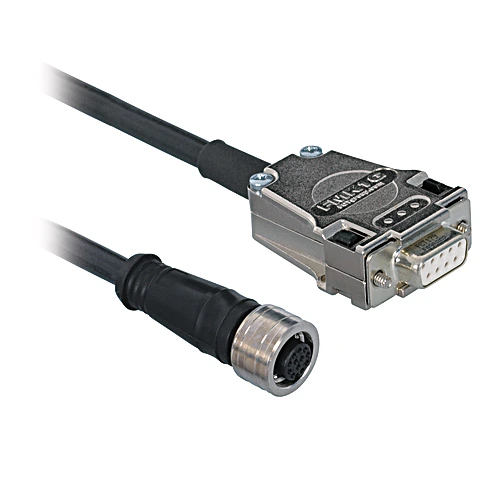

Wenglor ZAV13R201 Connection Cable M12 × 1; 12-pin - DB9 9-pin

Connection Cable M12 × 1; 12-pin - DB9 9-pin.

$112.00
Part Number
  • ZAV13R201
Highlights...

Features

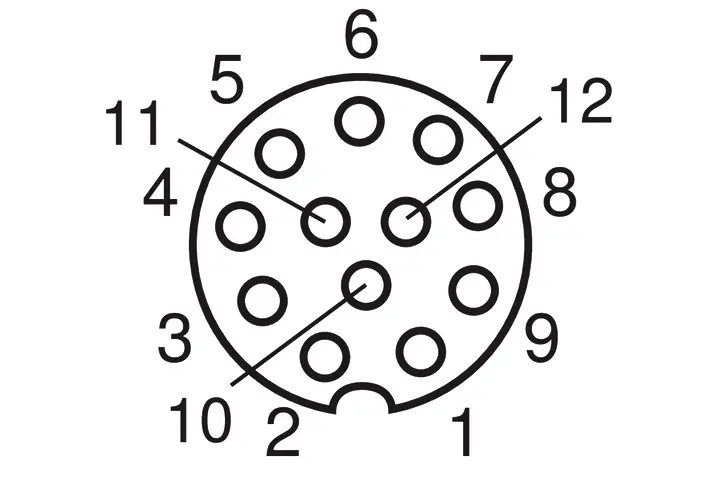

  • Socket M12 × 1, straight

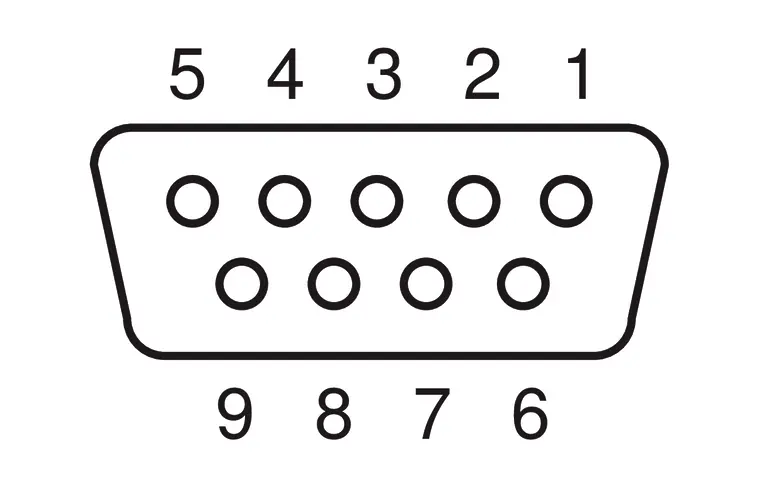

  • Socket SUB D, 9-pin
  • Connection 1: Socket, straight
  • Connection mode 1: M12 × 1, 12-pin
  • Connection 2: Plug, straight
  • Connection mode 2: SUB D, 9-pin
  • Coding: A-coding
  • Cable length (L): 2 m
  • Outer diameter (d): 6.4 mm
  • Wire cross-section: 0.14 mm²
  • Temperature Range: -13°F to 194°F
  • Cable Jacket Material: Plastic, PUR
  • Material Wire Insulation: Plastic, PP
  • Material Sleeve Nut: Brass, nickel-plated
  • Screened: yes
  • Halogen-free: yes
  • Drag Chain Suitable: yes
  • Weight: 176 g
  • Scope of delivery: 1 × line
  • Packaging unit: 1 Piece
