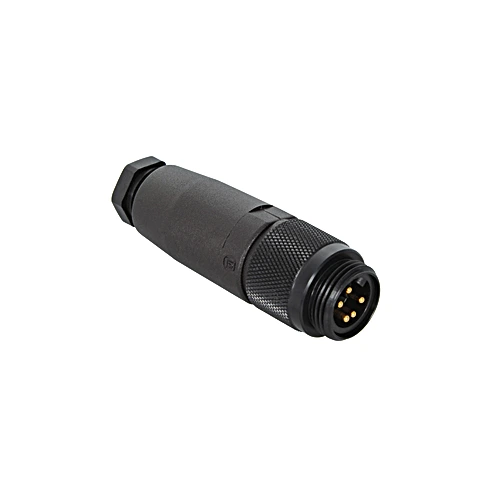

Wenglor ZAT77NN01 Connector Plug 7/8"; 5-pin

Connector Plug 7/8"; 5-pin.

$45.50
Part Number
  • ZAT77NN01
Highlights...

Features

  • Plug 7/8", straight
  • Connection 1: Plug, straight

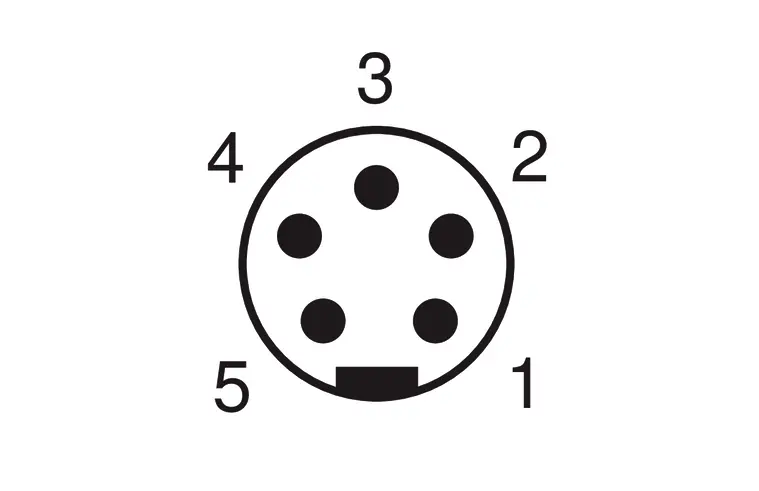

  • Connection mode 1: 7/8", 5-pin
  • Torque: 0,4 Nm
  • Outer diameter (d): 8 to 10 mm
  • Wire cross-section: ≤ 1.5 mm²
  • Assembling: Screw Terminal Technology
  • Degree of Protection: IP67
  • Temperature Range: -40°F to 194°F
  • Material Sleeve Nut: Aluminum, anodised
  • Weight: 66 g
  • Scope of delivery: 1 × connector plug
  • Packaging unit: 1 Piece
