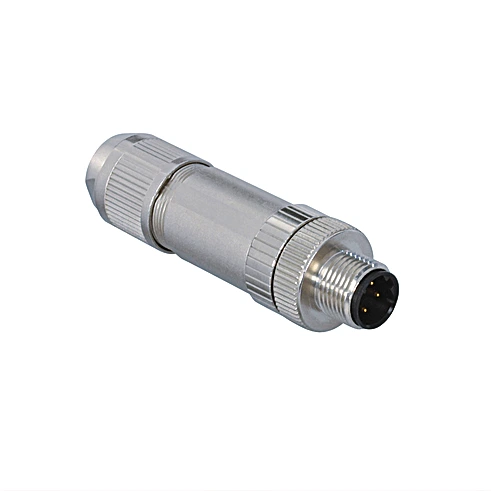

Wenglor ZAT51NN01 Connector Plug M12 × 1; 4-pin, D-coding

Connector Plug M12 × 1; 4-pin, D-coding.

$47.20
Part Number
  • ZAT51NN01
Highlights...

Features

  • D-coding
  • Plug M12 × 1, straight
  • Connection 1: Plug, straight
  • Connection mode 1: M12 × 1, 4-pin, D-cod.
  • Torque: M12: 0,4 Nm
  • Coding: D-coding
  • Outer diameter (d): 4 to 8 mm
  • Wire cross-section: 0.14 to 0.34 mm²
  • Assembling: Insulation displacement connector (IDC)
  • Degree of Protection: IP67
  • Temperature Range: -4°F to 176°F
  • Material Sleeve Nut: Brass, nickel-plated
  • Category: CAT 5
  • Screened: yes
  • Weight: 45 g
  • Scope of delivery: 1 × connector plug
  • Packaging unit: 1 Piece
