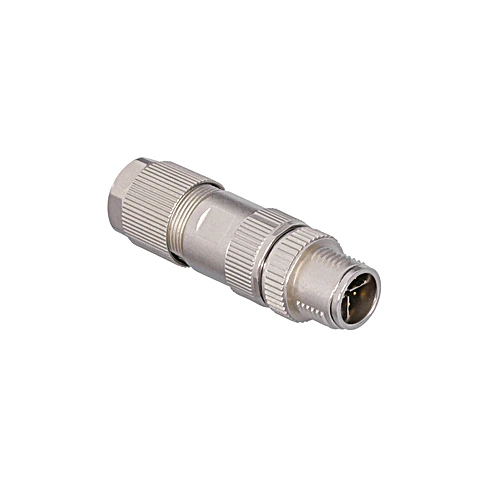

Wenglor ZAT50NN01 Connector Plug M12 × 1; 8-pin, X-coding
Connector Plug M12 × 1; 8-pin, X-coding.
$56.60
Part Number
- ZAT50NN01
Highlights...
- ZAT50NN01
- By Wenglor
- FREE Shipping on orders of $2,000 or more
Overview
Features
- X-coding
- Plug M12 × 1, straight
- Connection 1: Plug, straight
- Connection mode 1: M12 × 1, 8-pin, X-cod.
- Torque: M12: 0,4 Nm
- Coding: X-coding
- Outer diameter (d): 4 to 8 mm
- Wire cross-section: 0.14 mm²
- Assembling: Pin penetration
- Degree of Protection: IP67
- Temperature Range: 14°F to 122°F
- Category: CAT 6A
- Weight: 29 g
- Scope of delivery: 1 × connector plug
- Packaging unit: 1 Piece
Documents
Spec Sheets
Other

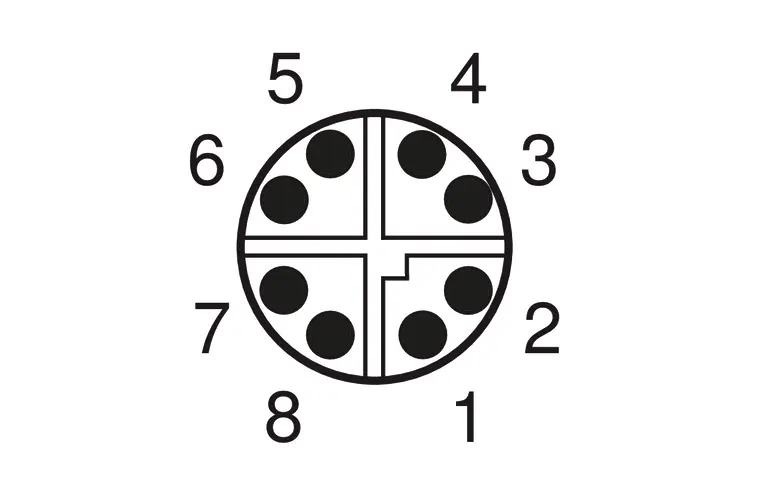

- Wenglor ZAT50NN01 Connector Plug M12 × 1; 8-pin, X-coding Pin assignment (86 KB)

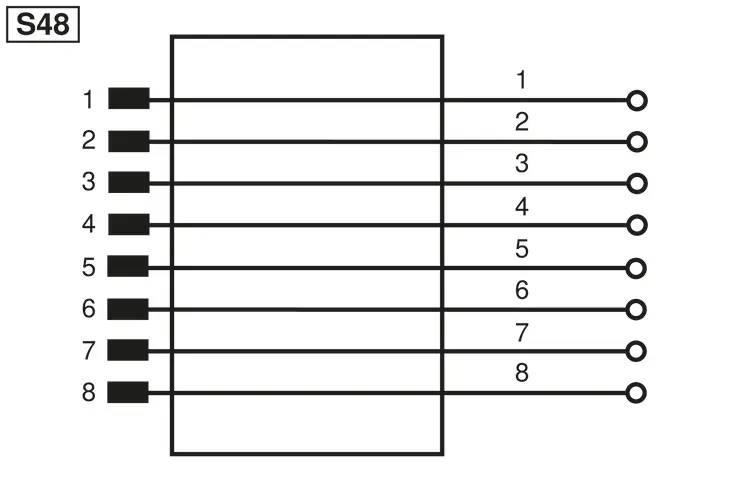

- Wenglor ZAT50NN01 Connector Plug M12 × 1; 8-pin, X-coding Connection Diagram-1 (30 KB)
- Wenglor ZAT50NN01 Connector Plug M12 × 1; 8-pin, X-coding Connection Diagram-2 (38 KB)

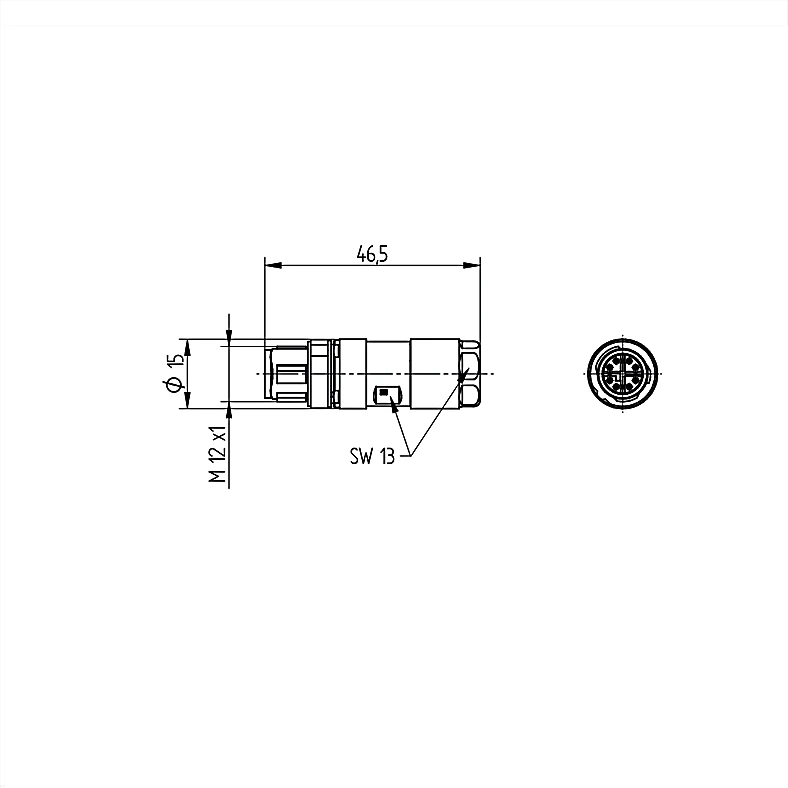

- Wenglor ZAT50NN01 Connector Plug M12 × 1; 8-pin, X-coding Dimensioned Picture (14 KB)
