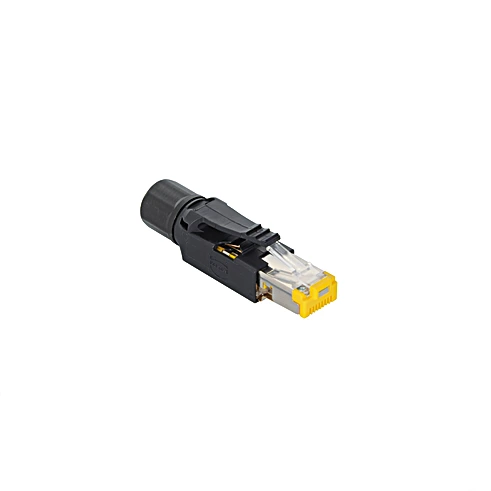

Wenglor ZAT45NN01 Connector Plug RJ45; 8-pin

Connector Plug RJ45; 8-pin.

$45.50
Part Number
  • ZAT45NN01
Highlights...

Features

  • AWG 27-22
  • Insulation displacement technology (IDC)

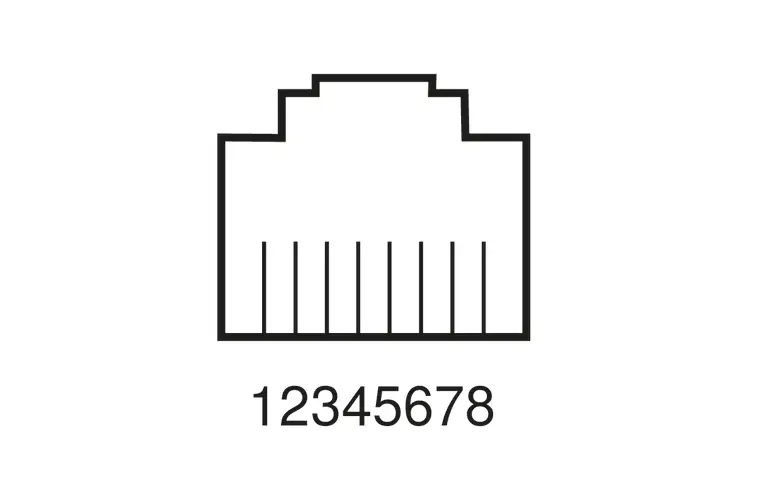

  • Plug RJ45, 8-pin
  • Connection 1: Plug, straight

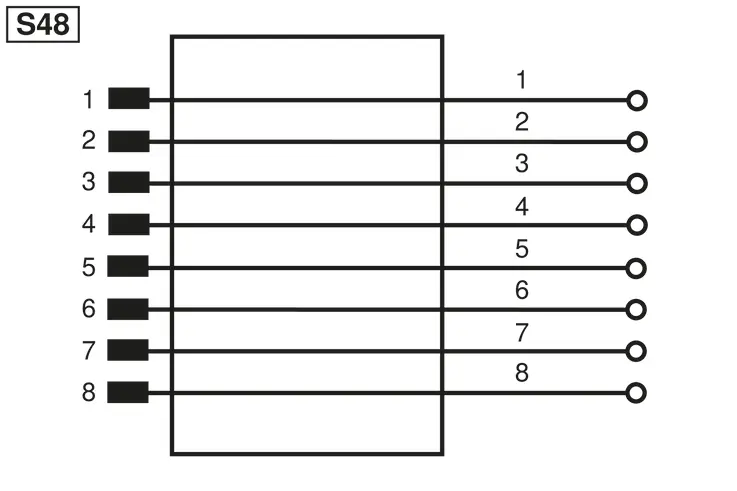

  • Connection mode 1: RJ45, 8-pin
  • Outer diameter (d): 4.5 to 9 mm
  • Wire cross-section: 0.1 to 0.5 mm²
  • Assembling: Insulation displacement connector (IDC)
  • Degree of Protection: IP20
  • Temperature Range: -40°F to 158°F
  • Category: Cat 6 EA
  • Screened: yes
  • Weight: 17 g
  • Scope of delivery: 1 × connector plug
  • Packaging unit: 1 Piece
