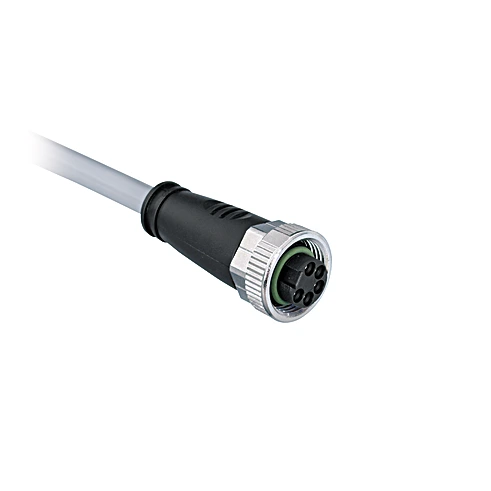

Wenglor ZAS78R601 Connection Line 7/8"; 5-pin

Features

• PUR, straight
• Halogen free, drag chain suitability
• Supply Voltage: ≤ 150 V AC/DC
• Connection 1: Socket, straight

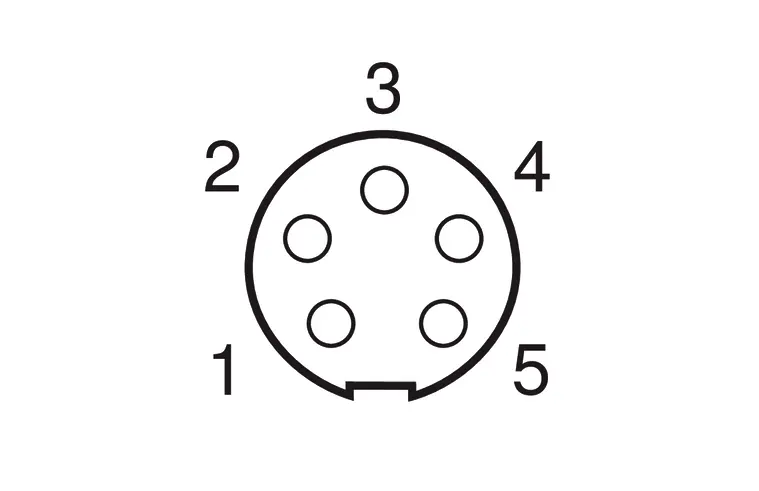

• Connection mode 1: 7/8", 5-pin
• Connection 2: stripped
• Torque: 1,5 Nm
• Cable length (L): 10 m
• Outer diameter (d): 8.7 mm
• Wire cross-section: 1.5 mm²
• Degree of Protection: IP67
• Temperature range (fixed installation): -58°F to 176°F
• Temperature range (moving application): -4°F to 176°F
• Cable Jacket Material: Plastic, PUR
• Material Wire Insulation: Plastic, TPM
• Material Sleeve Nut: Brass
• Halogen-free: yes
• Drag Chain Suitable: yes
• Bending radius (fixed installation): > 7,5 × d
• Bending radius (used in motion): > 10 × d
• Travel speed (with 5 m horizontal travel distance): ≤ 3,3 m/s
• Acceleration: ≤ 5 m/s²
• Bending cycles: ≤ 5000000
• Weight: 1,195 g
• Scope of delivery: 1 × connection line
• Packaging unit: 1 Piece
