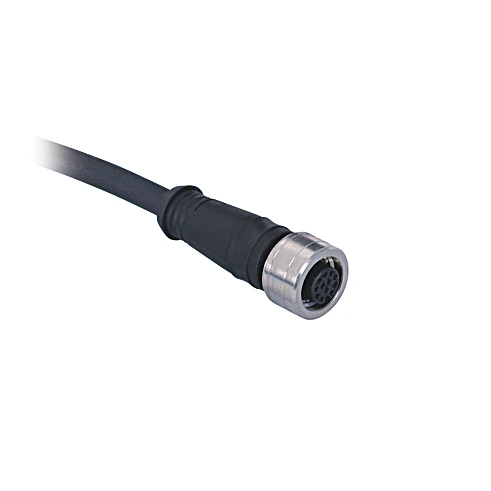

Wenglor ZAS13R201 Connection Line M12 × 1; 12-pin

Connection Line M12 × 1; 12-pin.

$83.90
Part Number
  • ZAS13R201
Highlights...

Features

  • Halogen free, drag chain suitability
  • PUR, straight
  • Connection 1: Socket, straight

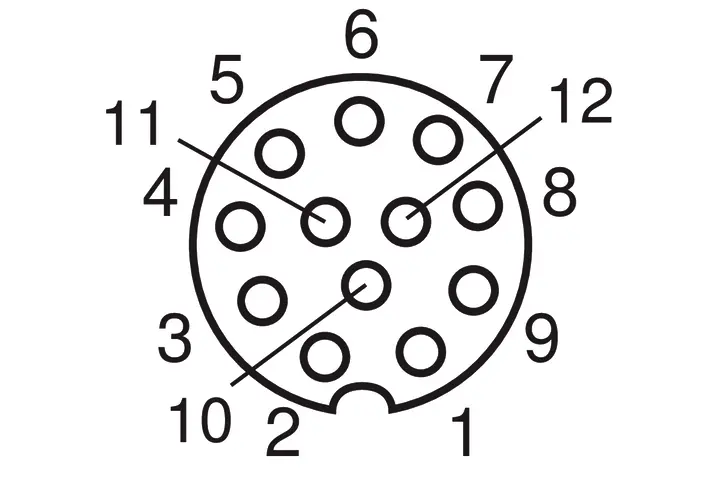

  • Connection mode 1: M12 × 1, 12-pin
  • Connection 2: stripped
  • Coding: A-coding
  • Cable length (L): 2 m
  • Outer diameter (d): 6.4 mm
  • Wire cross-section: 0.14 mm²
  • Degree of Protection: IP67
  • Temperature Range: -13°F to 194°F
  • Cable Jacket Material: Plastic, PUR
  • Material Wire Insulation: Plastic, PP
  • Material Sleeve Nut: Brass, nickel-plated
  • Screened: yes
  • Halogen-free: yes
  • Drag Chain Suitable: yes
  • Weight: 129 g
  • Scope of delivery: 1 × line
  • Packaging unit: 1 Piece
