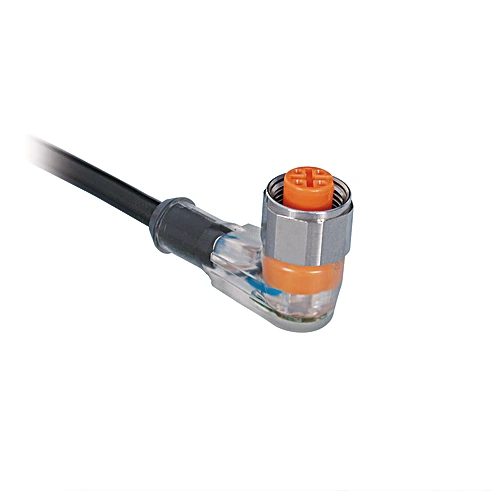

Wenglor ZAS02V802 Connection Line M12 × 1; 4-pin

Connection Line M12 × 1; 4-pin.

$62.10
Part Number
  • ZAS02V802
Highlights...

Features

  • Protection mode IP69K
  • With LED, angled
  • Supply Voltage: ≤ 125 V AC/DC
  • Connection 1: Socket, angled

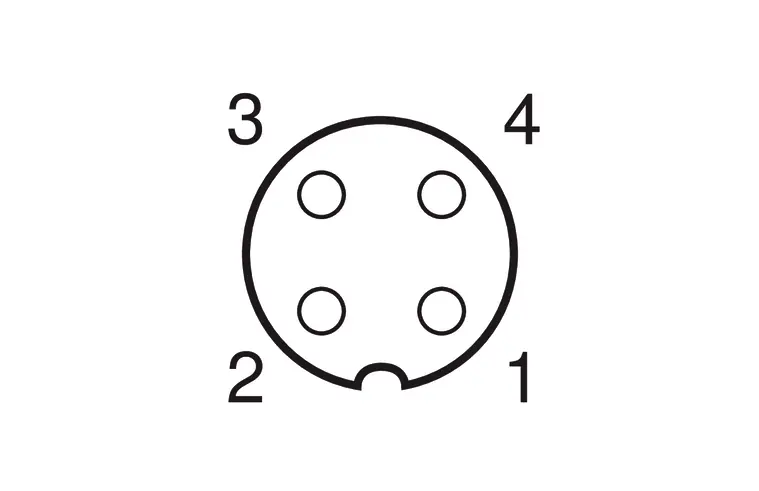

  • Connection mode 1: M12 × 1, 4-pin
  • Connection 2: stripped
  • Torque: M12: 0,7 Nm
  • Coding: A-coding
  • Cable length (L): 25 m
  • Outer diameter (d): 5 mm
  • Wire cross-section: 0.25 mm²
  • Display: LED
  • Degree of Protection: IP68, IP69K
  • Temperature range (fixed installation): -13°F to 176°F
  • Temperature range (moving application): -13°F to 176°F
  • Cable Jacket Material: PVC
  • Material Wire Insulation: PVC
  • Material Sleeve Nut: Stainless steel, V4A
  • Weight: 866 g
  • Scope of delivery: 1 × line
  • Packaging unit: 1 Piece
