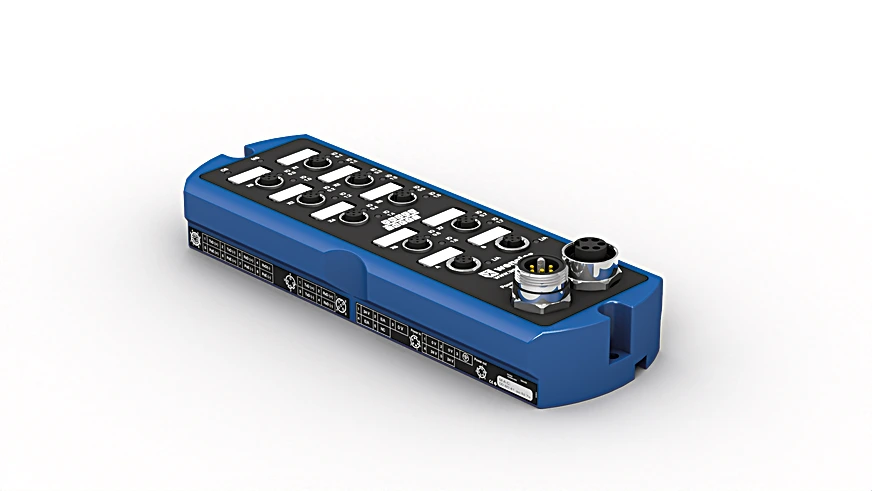

Wenglor ZAI02PN02 Ethernet Connection Box

Features

• 16 freely selectable input and output pins
• 2 Industrial Ethernet ports
• 8 digital I/O ports
• High protection class IP67
• Rugged aluminium housing
• Max. Switching Current Switching Outputs: 2 A
• Supply Voltage: 18 to 32 V DC
• Power consumption of device max.: 0.1 A
• Power consumption of system max.: 1.8 A
• Max. Switching Current Switching Outputs: 2 A
• max. total current of the digital I/O ports: 9 A
• Switching Output Voltage Drop: < 2.5 V
• Temperature Range: -13°F to 140°F
• Sensor Supply Voltage (Pin 1): 200 mA
• Inputs according to DIN EN 61131-2:2003: Type 2
• Short Circuit Protection: yes
• Overload Protection: yes
• Reverse Polarity Protection: yes
• Standard I/O-Pins: 16
• Transmission rate: 10/100 Mbit/s
• Transmission Mode: Full/Half Duplex
• Switch Mode: Store & Forward
• VLAN Prioritization: yes
• Auto-Crossover: yes
• Auto-Negotiating: yes
• Auto-Polarity: yes
• Interface: PROFINET
• Protection Class: III
• Setting Method: Web server
• Material: Aluminum
• Degree of Protection: IP67

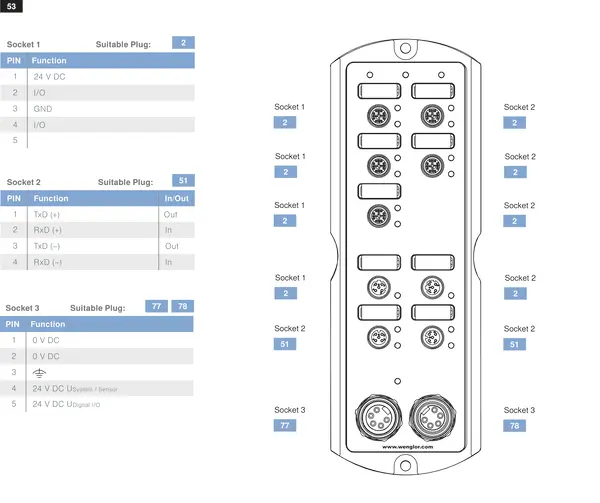

• Type of Connection Power: 2 × 7/8", 5-pin
• Type of Connection Industrial Ethernet Ports: 2 × M12; 4-pin
• Type of connection digital I/O ports: 8 × M12; 4-pin
• Weight: 1,152 g
• Scope of delivery: 1 × BEF-SET-40 mounting set, 1 × Ethernet connection box, 1 × initial start-up instructions, 1 × thermal transfer printing adhesive label
• PROFINET-I/O, CC-B: yes
• Complementary Products: Locking Screw for 7/8" Z0028, Locking Screw for M12 Z0027
