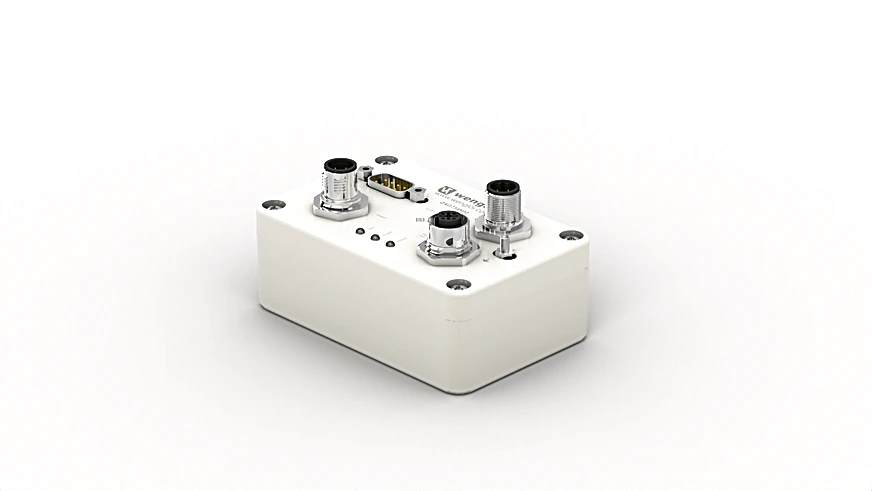

Wenglor ZAG73AN02 Fieldbus Gateway RS-232 to PROFIBUS DP

Features

• Gateway from RS-232 interfaces on PROFIBUS DP
• Voltage supply of external units (5 V DC) via the gateway
• Protection mode IP65
• Supply Voltage: 15 to 30 V DC
• Voltage Supply of external products: 5 V
• Current Consumption Sensor (Ub = 5 V): < 1 A
• Temperature Range: 14°F to 122°F
• Short Circuit Protection: yes
• Reverse Polarity Protection: yes
• Interface: RS-232
• Baud Rate PROFIBUS: < 12 MBd
• Baud Rate RS-232: < 115,200 Bd
• Number of users: 126
• Protection Class: III
• Housing Material: Plastic, ABS
• Degree of Protection: IP65

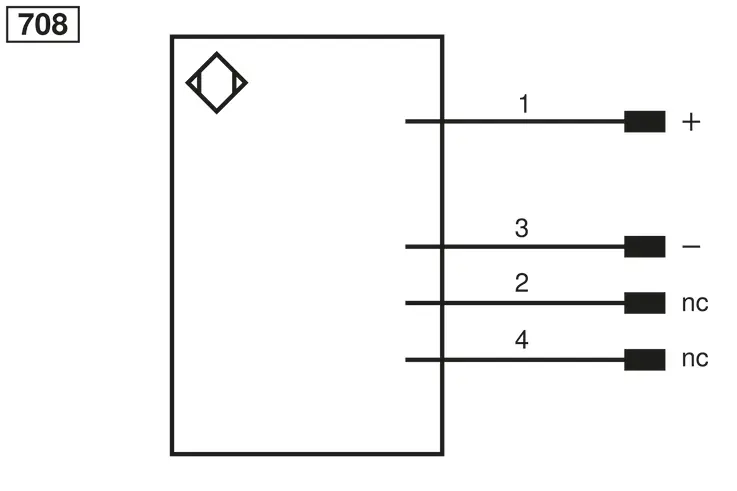

• Connection Mode Supply Voltage: M12 × 1; 4-pin
• Connection Mode Scanner: SubD 9 S
• Connection Bus Side: M12 × 1; 4-pin
• Weight: 311 g
• Scope of delivery: 1 × fieldbus gateway
• Complementary Products: Interface Cable S232W3, Interface cable FISZ-RS23207
